Please send RFQ , we will respond immediately.

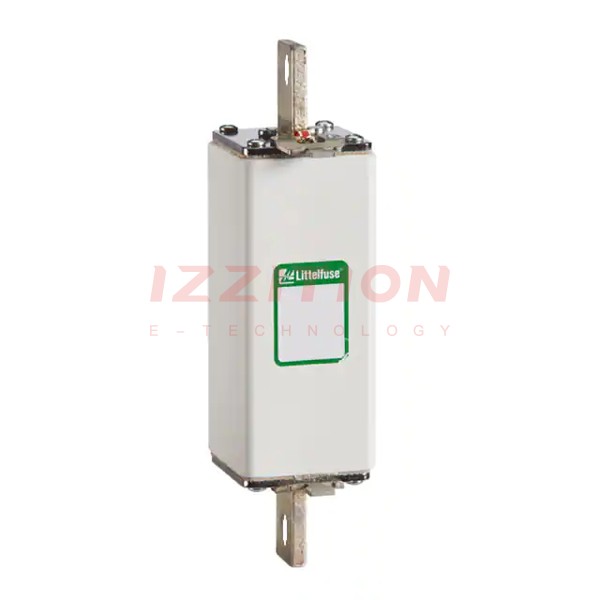

| Part Number | PSR073DL1250X | PSR073UL1250X |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active |
| Mounting Type | Bolt Mount | Bolt Mount |
| Fuse Type | Square | Square |
| Current Rating (Amps) | 1.25kA | 1.25kA |
| Voltage Rating - AC | 1 kV | 1 kV |
| Voltage Rating - DC | - | - |
| Response Time | Fast Blow | Fast Blow |
| Applications | Semiconductors | Semiconductors |
| Features | Indicating | Indicating |
| Class | - | - |
| Approval Agency | CE, cURus, UL | CE, cURus, UL |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 100kA | 100kA |
| Package / Case | Rectangular, Blade | Rectangular, Blade |
| Size / Dimension | 2.921" L x 2.894" W x 3.130" H (74.20mm x 73.50mm x 79.50mm) | 2.921" L x 2.894" W x 3.130" H (74.20mm x 73.50mm x 79.50mm) |
