Please send RFQ , we will respond immediately.

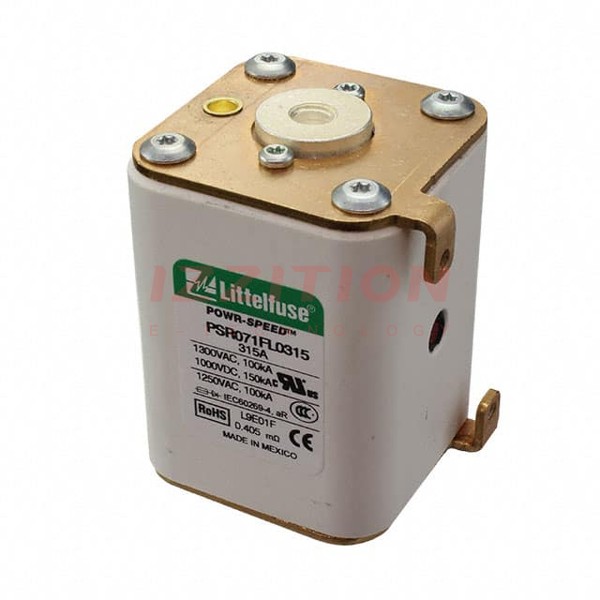

| Part Number | PSR071FL0315Z | PSR071UL0315Z | PSR071DL0315Z |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Mounting Type | Bolt Mount | Bolt Mount | Bolt Mount |
| Fuse Type | Square | Square | Square |
| Current Rating (Amps) | 315A | 315A | 315A |
| Voltage Rating - AC | 1.3 kV | 1.3 kV | 1.3 kV |
| Voltage Rating - DC | 1 kV | 1 kV | 1 kV |
| Response Time | Fast Blow | Fast Blow | Fast Blow |
| Applications | Semiconductors | Semiconductors | Semiconductors |
| Features | - | Indicating | Indicating |
| Class | - | - | - |
| Approval Agency | CCC, CE, cURus, UL | CE, cURus, UL | CCC, CE, cURus, UL |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 100kA AC, 150kA DC | 100kA AC, 150kA DC | 100kA AC, 150kA DC |
| Package / Case | - | - | - |
| Size / Dimension | 2.913" L x 2.028" W x 2.264" H (74.00mm x 51.50mm x 57.50mm) | 2.843" L x 2.028" W x 2.264" H (72.20mm x 51.50mm x 57.50mm) | 2.843" L x 2.028" W x 2.264" H (72.20mm x 51.50mm x 57.50mm) |
