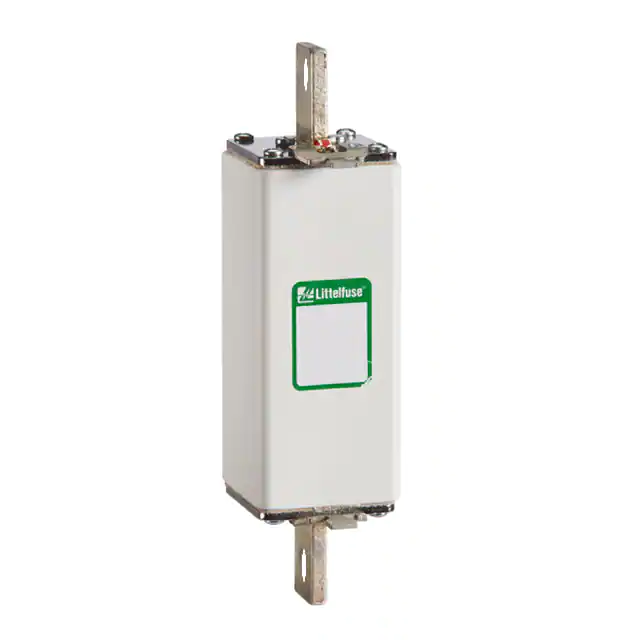

| Part Number | PSR070FS0400Z | PSR071FS0400Z | PSR072FS0400Z | PSR070FL0400Z | PSR070FS0200Z |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Holder | Bolt Mount | Bolt Mount | Holder | Bolt Mount |
| Fuse Type | Square | Square | Square | Square | Square |
| Current Rating (Amps) | 400A | 400A | 400A | 400A | 200A |
| Voltage Rating - AC | 1.2 kV | 1.3 kV | 1.3 kV | 1.2 kV | 1.3 kV |
| Voltage Rating - DC | 900 V | 1 kV | 1 kV | 900 V | 1 kV |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors |
| Features | Indicating | - | - | Indicating | - |
| Class | - | - | - | - | - |
| Approval Agency | CE, cURus, UL | CCC, CE, cURus, UL | CCC, CE, cURus, UL | CE, cURus, UL | CCC, CE, cURus, UL |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 100kA AC, 150kA DC | 100kA AC, 150kA DC | 100kA AC, 150kA DC | 100kA AC, 150kA DC | 100kA AC, 150kA DC |
| Package / Case | Rectangular, Blade | - | - | Rectangular, Blade | - |
| Size / Dimension | 2.913" L x 1.693" W x 1.929" H (74.00mm x 43.00mm x 49.00mm) | 2.913" L x 2.028" W x 2.264" H (74.00mm x 51.50mm x 57.50mm) | 2.953" L x 2.362" W x 2.598" H (75.00mm x 60.00mm x 66.00mm) | 2.913" L x 1.693" W x 1.929" H (74.00mm x 43.00mm x 49.00mm) | 2.913" L x 1.693" W x 1.929" H (74.00mm x 43.00mm x 49.00mm) |
