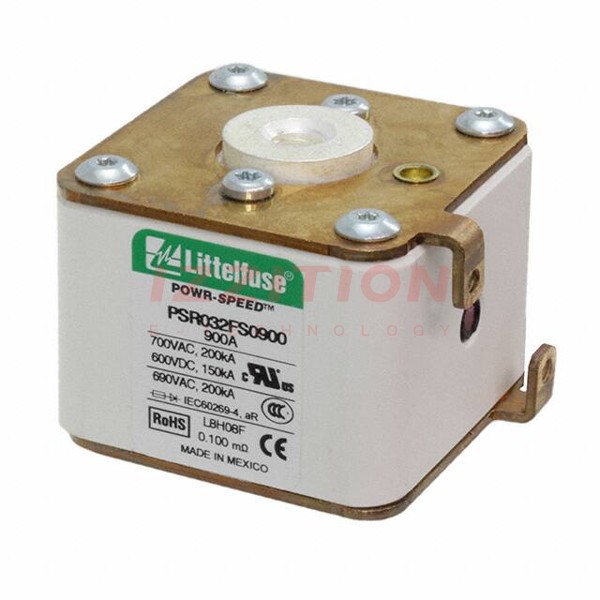

| Part Number | PSR032FS0900Z | PSR033FS0900Z | PSR031FS0900Z | PSR032FS0400Z | PSR032FS0500Z | PSR032FS0800Z |
|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Mounting Type | Bolt Mount | Bolt Mount | Holder | Bolt Mount | Bolt Mount | Bolt Mount |
| Fuse Type | Square | Square | Square | Square | Square | Square |
| Current Rating (Amps) | 900A | 900A | 900A | 400A | 500A | 800A |
| Voltage Rating - AC | 700 V | 700 V | 600 V | 700 V | 700 V | 700 V |
| Voltage Rating - DC | 600 V | 600 V | 550 V | 600 V | 600 V | 600 V |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors |
| Features | - | - | Indicating | - | - | - |
| Class | - | - | - | - | - | - |
| Approval Agency | CCC, CE, cURus, UL | CCC, CE, cURus, UL | CE, cURus, UL | CCC, CE, cURus, UL | CCC, CE, cURus, UL | CCC, CE, cURus, UL |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 200kA AC, 150kA DC | 200kA AC, 150kA DC | 200kA AC, 150kA DC | 200kA AC, 150kA DC | 200kA AC, 150kA DC | 200kA AC, 150kA DC |
| Package / Case | - | - | Rectangular, Blade | - | - | - |
| Size / Dimension | 2.008" L x 2.362" W x 2.598" H (51.00mm x 60.00mm x 66.00mm) | 2.008" L x 2.894" W x 3.130" H (51.00mm x 73.50mm x 79.50mm) | 1.969" L x 2.028" W x 2.264" H (50.00mm x 51.50mm x 57.50mm) | 2.008" L x 2.362" W x 2.598" H (51.00mm x 60.00mm x 66.00mm) | 2.008" L x 2.362" W x 2.598" H (51.00mm x 60.00mm x 66.00mm) | 2.008" L x 2.362" W x 2.598" H (51.00mm x 60.00mm x 66.00mm) |
