PSR030UL0500Z
  • Share:

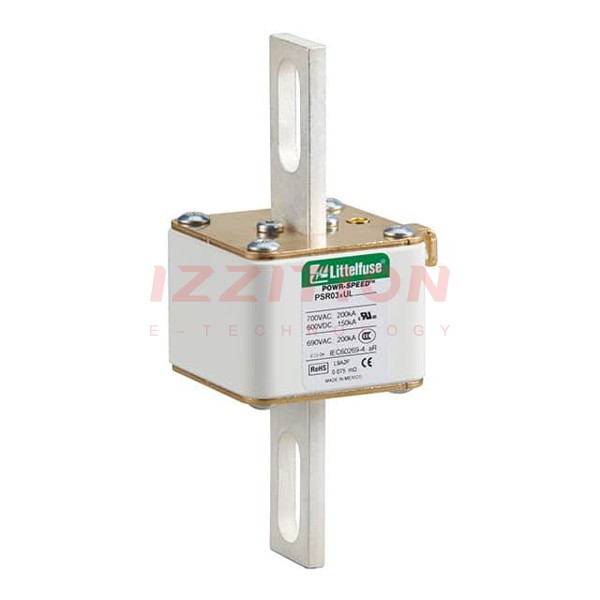

Littelfuse Inc. PSR030UL0500Z

Manufacturer No:
PSR030UL0500Z
Manufacturer:
Littelfuse Inc.
Package:
Box
Datasheet:
PSR030UL0500Z Datasheet
ECAD Model:
-
Description:
FUSE SQUARE 500A 700VAC/600VDC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Mounting Type:Bolt Mount
Fuse Type:Square
Current Rating (Amps):500A
Voltage Rating - AC:700 V
Voltage Rating - DC:600 V
Response Time:Fast Blow
Applications:Semiconductors
Features:Indicating
Class:-
Approval Agency:CE, cURus, UL
Operating Temperature:-55°C ~ 125°C
Breaking Capacity @ Rated Voltage:200kA AC, 150kA DC
Package / Case:-
Size / Dimension:1.866" L x 1.693" W x 1.929" H (47.40mm x 43.00mm x 49.00mm)
0 Remaining View Similar

In Stock

$234.75
3

Please send RFQ , we will respond immediately.

Similar Products

Part Number PSR030UL0500Z PSR030UL0550Z   PSR030US0500Z   PSR031UL0500Z   PSR030DL0500Z   PSR030UL0100Z   PSR030UL0200Z   PSR030UL0400Z
Manufacturer Littelfuse Inc. Littelfuse Inc. Littelfuse Inc. Littelfuse Inc. Littelfuse Inc. Littelfuse Inc. Littelfuse Inc. Littelfuse Inc.
Product Status Active Active Active Active Active Active Active Active
Mounting Type Bolt Mount Bolt Mount Bolt Mount Bolt Mount Bolt Mount Bolt Mount Bolt Mount Bolt Mount
Fuse Type Square Square Square Square Square Square Square Square
Current Rating (Amps) 500A 550A 500A 500A 500A 100A 200A 400A
Voltage Rating - AC 700 V 700 V 700 V 700 V 700 V 700 V 700 V 700 V
Voltage Rating - DC 600 V 600 V 600 V 600 V 600 V 600 V 600 V 600 V
Response Time Fast Blow Fast Blow Fast Blow Fast Blow Fast Blow Fast Blow Fast Blow Fast Blow
Applications Semiconductors Semiconductors Semiconductors Semiconductors Semiconductors Semiconductors Semiconductors Semiconductors
Features Indicating Indicating Indicating Indicating Indicating Indicating Indicating Indicating
Class - - - - - - - -
Approval Agency CE, cURus, UL CE, cURus, UL CE, cURus, UL CE, cURus, UL CCC, CE, cURus, UL CE, cURus, UL CE, cURus, UL CE, cURus, UL
Operating Temperature -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C
Breaking Capacity @ Rated Voltage 200kA AC, 150kA DC 200kA AC, 150kA DC 200kA AC, 150kA DC 200kA AC, 150kA DC 200kA AC, 150kA DC 200kA AC, 150kA DC 200kA AC, 150kA DC 200kA AC, 150kA DC
Package / Case - - - - - - - -
Size / Dimension 1.866" L x 1.693" W x 1.929" H (47.40mm x 43.00mm x 49.00mm) 1.866" L x 1.693" W x 1.929" H (47.40mm x 43.00mm x 49.00mm) 1.866" L x 1.693" W x 1.929" H (47.40mm x 43.00mm x 49.00mm) 1.898" L x 2.028" W x 2.264" H (48.20mm x 51.50mm x 57.50mm) 1.866" L x 1.693" W x 1.929" H (47.40mm x 43.00mm x 49.00mm) 1.866" L x 1.693" W x 1.929" H (47.40mm x 43.00mm x 49.00mm) 1.866" L x 1.693" W x 1.929" H (47.40mm x 43.00mm x 49.00mm) 1.866" L x 1.693" W x 1.929" H (47.40mm x 43.00mm x 49.00mm)
