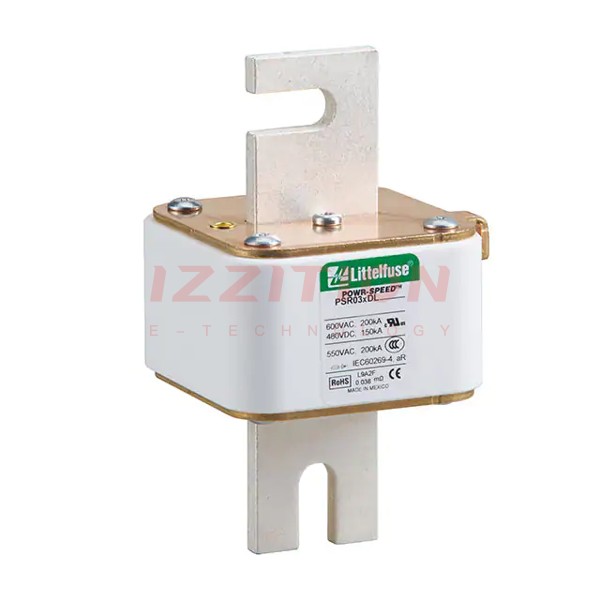

| Part Number | PSR030DL0160Z | PSR030UL0160Z | PSR030DS0160Z | PSR030DL0100Z |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active |
| Mounting Type | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount |
| Fuse Type | Square | Square | Square | Square |
| Current Rating (Amps) | 160A | 160A | 160A | 100A |
| Voltage Rating - AC | 700 V | 700 V | 700 V | 700 V |
| Voltage Rating - DC | 600 V | 600 V | 600 V | 600 V |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Semiconductors | Semiconductors | Semiconductors | Semiconductors |
| Features | Indicating | Indicating | Indicating | Indicating |
| Class | - | - | - | - |
| Approval Agency | CCC, CE, cURus, UL | CE, cURus, UL | CCC, CE, cURus, UL | CCC, CE, cURus, UL |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 200kA AC, 150kA DC | 200kA AC, 150kA DC | 200kA AC, 150kA DC | 200kA AC, 150kA DC |
| Package / Case | - | - | - | - |
| Size / Dimension | 1.866" L x 1.693" W x 1.929" H (47.40mm x 43.00mm x 49.00mm) | 1.866" L x 1.693" W x 1.929" H (47.40mm x 43.00mm x 49.00mm) | 1.866" L x 1.693" W x 1.929" H (47.40mm x 43.00mm x 49.00mm) | 1.866" L x 1.693" W x 1.929" H (47.40mm x 43.00mm x 49.00mm) |
