Please send RFQ , we will respond immediately.

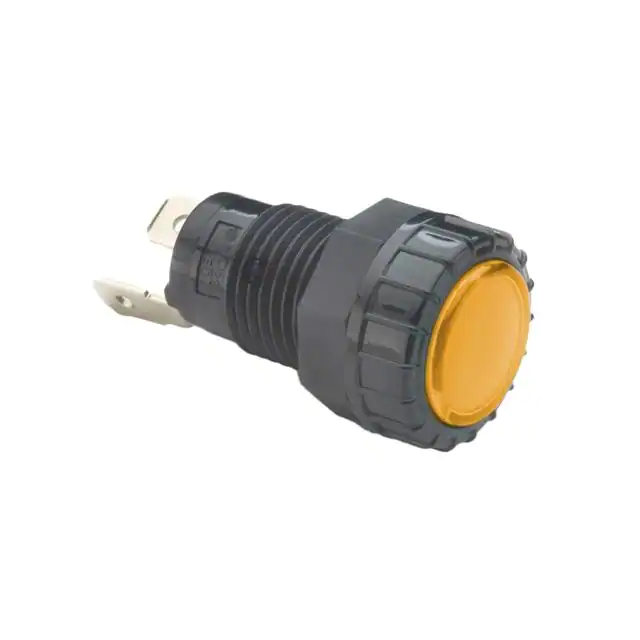

| Part Number | PL-521-AC | PL-525-AC | PL-526-AC | PL-522-AC | PL-521-GC | PL-521-RC |
|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | LED | LED | LED | LED | LED | LED |
| Lamp Color | Amber | Amber | Amber | Amber | Green | Red |
| Lens Color | - | - | - | - | - | - |
| Lens Transparency | - | - | - | - | - | - |
| Ratings | DC | DC | DC | DC | DC | DC |
| Voltage | 12V | 12V | 12V | 12V | 12V | 12V |
| Current | - | - | - | - | - | - |
| Panel Cutout Shape | Round | Round | Round | Round | Round | Round |
| Panel Cutout Dimensions | 0.69" (17.46mm) | 0.33" (8.33mm) | 0.33" (8.33mm) | 0.63" (15.88mm) | 0.69" (17.46mm) | 0.69" (17.46mm) |
| Lens Size | - | - | - | - | - | - |
| Lens Style | Round with Flat Top | Round with Domed Top | Round with Domed Top | Round with Flat Top | Round with Flat Top | Round with Flat Top |
| Millicandela Rating | - | - | - | - | - | - |
| Wavelength - Peak | - | - | - | - | - | - |
| Viewing Angle | - | - | - | - | - | - |
| Termination Style | Quick Connect - 0.250" (6.3mm) | Wire Leads - 6.750" (171.5mm) | Wire Leads - 6.750" (171.5mm) | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) |
| Ingress Protection | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
