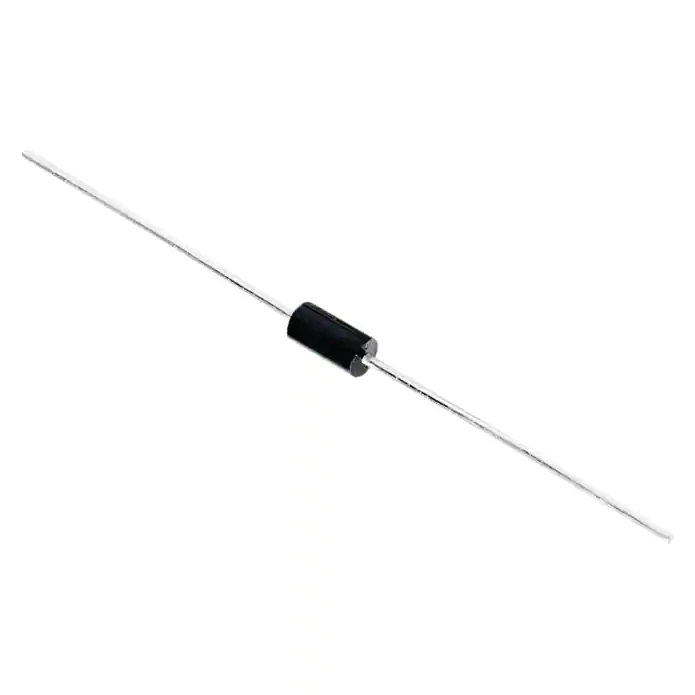

| Part Number | P6KE75-B | P6KE75A-B | P6KE75C-B | P6KE7.5-B |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | - | 1 |
| Bidirectional Channels | - | - | 1 | - |
| Voltage - Reverse Standoff (Typ) | 64.1V | 64.1V | 64.1V | 6.4V |
| Voltage - Breakdown (Min) | 67.55V | 71.3V | 67.55V | 6.75V |
| Voltage - Clamping (Max) @ Ipp | 108.15V | 103V | 108.15V | 11.87V |
| Current - Peak Pulse (10/1000µs) | - | 5.9A | - | - |
| Power - Peak Pulse | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-204AC (DO-15) | DO-204AC (DO-15) | DO-204AC (DO-15) | DO-204AC (DO-15) |
