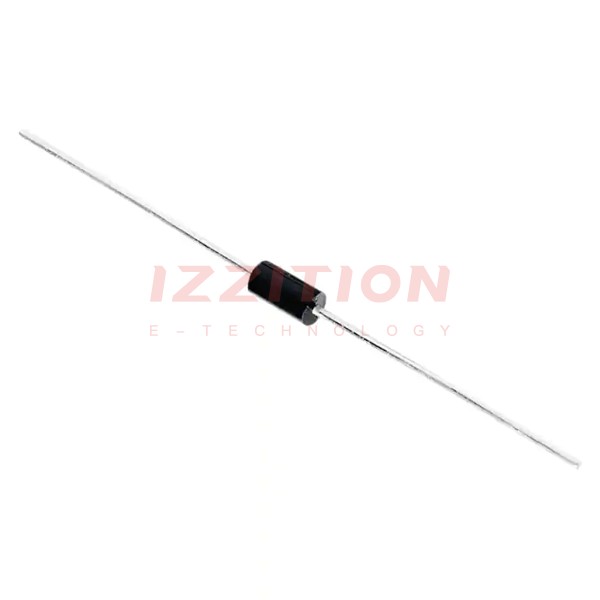

| Part Number | P6KE39-B | P6KE39A-B | P6KE39C-B | P6KE36-B |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | - | 1 |
| Bidirectional Channels | - | - | 1 | - |
| Voltage - Reverse Standoff (Typ) | 33.3V | 33.3V | 33.3V | 30.8V |
| Voltage - Breakdown (Min) | 35.15V | 37.1V | 35.15V | 32.4V |
| Voltage - Clamping (Max) @ Ipp | 56.6V | 53.9V | 56.6V | 52.4V |
| Current - Peak Pulse (10/1000µs) | - | 11.3A | - | - |
| Power - Peak Pulse | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-204AC (DO-15) | DO-204AC (DO-15) | DO-204AC (DO-15) | DO-204AC (DO-15) |
