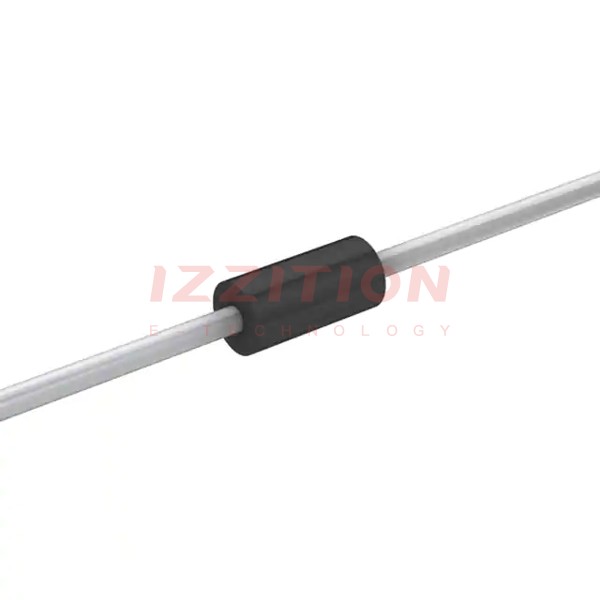

| Part Number | P4KE480CA-B | P4KE440CA-B | P4KE480A-B | P4KE480C-B |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Obsolete |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | 1 | - |
| Bidirectional Channels | 1 | 1 | - | 1 |
| Voltage - Reverse Standoff (Typ) | 408V | 376V | 408V | 408V |
| Voltage - Breakdown (Min) | 456V | 418V | 456V | 432V |
| Voltage - Clamping (Max) @ Ipp | 658V | 602V | 658V | 690.9V |
| Current - Peak Pulse (10/1000µs) | 610mA | 680mA | 610mA | 610mA |
| Power - Peak Pulse | 400W | 400W | 400W | 400W |
| Power Line Protection | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-204AL (DO-41) | DO-204AL (DO-41) | DO-204AL (DO-41) | DO-204AL (DO-41) |
