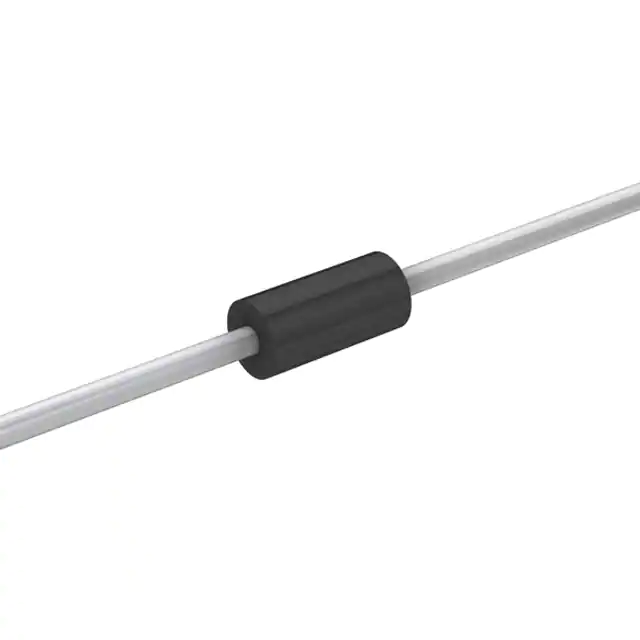

| Part Number | P4KE16A | P4KE16CA | P4KE16AH | P4KE16C | P4KE15A | P4KE16 | P4KE160 | P4KE160A |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | SMC Diode Solutions | Taiwan Semiconductor Corporation | Diotec Semiconductor | SMC Diode Solutions | Diotec Semiconductor | Diotec Semiconductor | SMC Diode Solutions |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | - | 1 | - | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | 1 | - | 1 | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 13.6V | 13.6V | 13.6V | 12.9V | 12.1V | 12.9V | 130V | 130V |
| Voltage - Breakdown (Min) | 15.2V | 15.2V | 15.2V | 14.4V | 14.3V | 14.4V | 144V | 152V |
| Voltage - Clamping (Max) @ Ipp | 22.5V | 22.5V | 22.5V | 23.5V | 21.2V | 23.5V | 230V | 219V |
| Current - Peak Pulse (10/1000µs) | 18.2A | 19A | 18.6A | 17.8A | 20A | 17.8A | 1.8A | 1.9A |
| Power - Peak Pulse | 400W | 400W | 400W | 400W | 400W | 400W | 400W | 400W |
| Power Line Protection | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | Automotive | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -50°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -50°C ~ 175°C (TJ) | -50°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AC, DO-15, Axial | DO-204AL, DO-41, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-204AL (DO-41) | DO-41 | DO-204AL (DO-41) | DO15/DO204AC | DO-41 | DO15/DO204AC | DO15/DO204AC | DO-41 |
