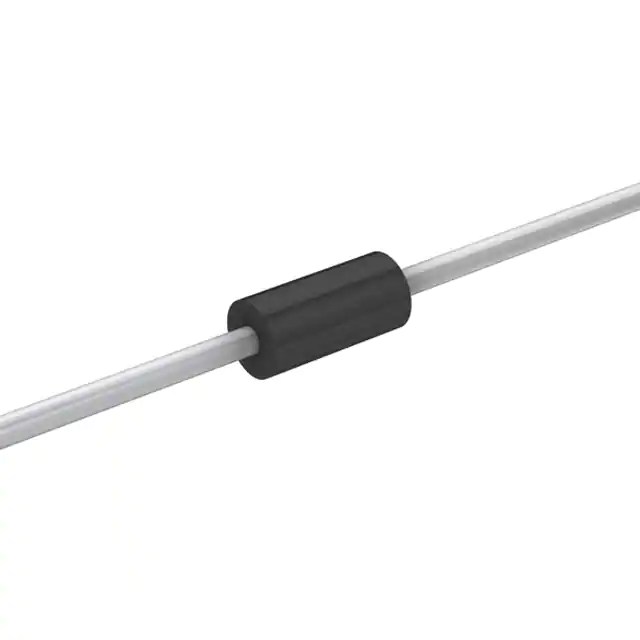

| Part Number | P4KE12CA | P4KE13CA | P4KE12CAH | P4KE11CA | P4KE120A | P4KE120CA | P4KE12A | P4KE12C |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | SMC Diode Solutions | Taiwan Semiconductor Corporation | SMC Diode Solutions | Littelfuse Inc. | SMC Diode Solutions | Littelfuse Inc. | Diotec Semiconductor |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | 1 | - | 1 | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 | - | 1 | - | 1 |
| Voltage - Reverse Standoff (Typ) | 10.2V | 11.1V | 10.2V | 9.4V | 102V | 102V | 10.2V | 9.7V |
| Voltage - Breakdown (Min) | 11.4V | 12.4V | 11.4V | 10.5V | 114V | 114V | 11.4V | 10.8V |
| Voltage - Clamping (Max) @ Ipp | 16.7V | 18.2V | 16.7V | 15.6V | 165V | 165V | 16.7V | 17.3V |
| Current - Peak Pulse (10/1000µs) | 24.6A | 23A | 25A | 27A | 2.5A | 2.5A | 24.6A | 24A |
| Power - Peak Pulse | 400W | 400W | 400W | 400W | 400W | 400W | 400W | 400W |
| Power Line Protection | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | Automotive | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -50°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-204AL (DO-41) | DO-41 | DO-204AL (DO-41) | DO-41 | DO-204AL (DO-41) | DO-41 | DO-204AL (DO-41) | DO15/DO204AC |
