| Part Number | P3500EA | P3500EAL | P3500EB | P3500EC | P3500SA |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Voltage - Breakover | 400V | 400V | 400V | 400V | 400V |
| Voltage - Off State | 320V | 320V | 320V | 320V | 320V |
| Voltage - On State | 4 V | 4 V | 4 V | 4 V | 4 V |
| Current - Peak Pulse (8/20µs) | 150 A | 150 A | 250 A | 400 A | 150 A |
| Current - Peak Pulse (10/1000µs) | 45 A | 45 A | 80 A | 100 A | 45 A |
| Current - Hold (Ih) | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA |
| Number of Elements | 1 | 1 | 1 | 1 | 1 |
| Capacitance | 35pF | 35pF | 40pF | 65pF | 30pF |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount |

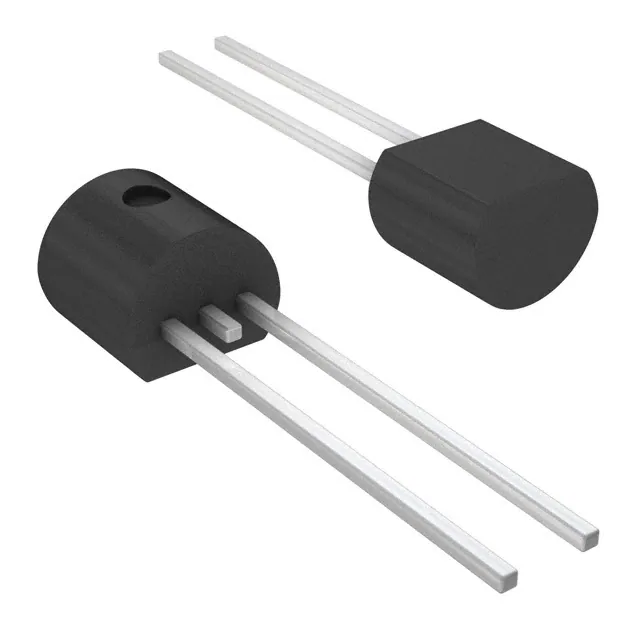

| Package / Case | TO-226-2, TO-92-2 (TO-226AC) | TO-226-2, TO-92-2 (TO-226AC) | TO-226-2, TO-92-2 (TO-226AC) | TO-226-2, TO-92-2 (TO-226AC) | DO-214AA, SMB |
