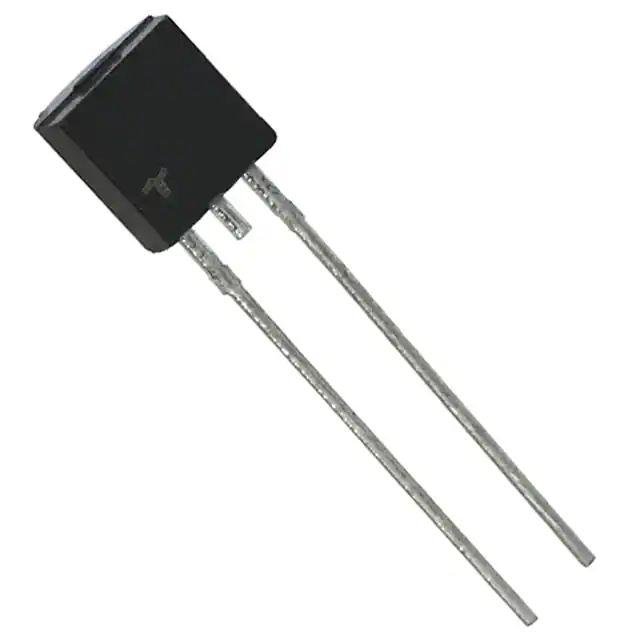

| Part Number | P3100EARP2 | P3100EBRP2 | P3100ECRP2 | P3100EALRP2 | P3100EARP1 |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Obsolete |
| Voltage - Breakover | 350V | 350V | 350V | 350V | 350V |
| Voltage - Off State | 275V | 275V | 275V | 275V | 275V |
| Voltage - On State | 4 V | 4 V | 4 V | 4 V | 4 V |
| Current - Peak Pulse (8/20µs) | 150 A | 250 A | 400 A | 150 A | 150 A |
| Current - Peak Pulse (10/1000µs) | 45 A | 80 A | 100 A | 45 A | 45 A |
| Current - Hold (Ih) | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA |
| Number of Elements | 1 | 1 | 1 | 1 | 1 |
| Capacitance | 35pF | 45pF | 70pF | 35pF | 35pF |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) | TO-226-2, TO-92-2 (TO-226AC) |
