Please send RFQ , we will respond immediately.

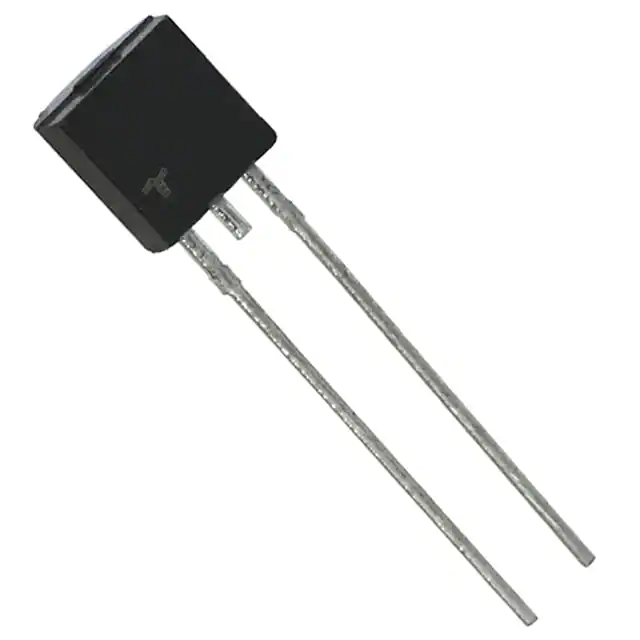

| Part Number | P1500ECAP | P1500ECLAP | P1300ECAP | P1500EAAP |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Voltage - Breakover | 180V | 180V | 160V | 180V |
| Voltage - Off State | 140V | 140V | 120V | 140V |
| Voltage - On State | 4 V | 4 V | 4 V | 4 V |
| Current - Peak Pulse (8/20µs) | 400 A | 400 A | 400 A | 150 A |
| Current - Peak Pulse (10/1000µs) | 100 A | 100 A | 100 A | 45 A |
| Current - Hold (Ih) | 150 mA | 150 mA | 150 mA | 150 mA |
| Number of Elements | 1 | 1 | 1 | 1 |
| Capacitance | 95pF | 95pF | 105pF | 40pF |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) |
