| Part Number | P1300ECLRP2 | P1500ECLRP2 | P1300ECRP2 | P1100ECLRP2 | P1300EALRP2 | P1300EBLRP2 | P1300ECLRP1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Obsolete | Active | Active | Active | Active |
| Voltage - Breakover | 160V | 180V | 160V | 130V | 160V | 160V | 160V |
| Voltage - Off State | 120V | 140V | 120V | 90V | 120V | 120V | 120V |
| Voltage - On State | 4 V | 4 V | 4 V | 4 V | 4 V | 4 V | 4 V |
| Current - Peak Pulse (8/20µs) | 400 A | 400 A | 400 A | 400 A | 150 A | 250 A | 400 A |
| Current - Peak Pulse (10/1000µs) | 100 A | 100 A | 100 A | 100 A | 45 A | 80 A | 100 A |
| Current - Hold (Ih) | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA |
| Number of Elements | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Capacitance | 105pF | 95pF | 105pF | 115pF | 45pF | 60pF | 105pF |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

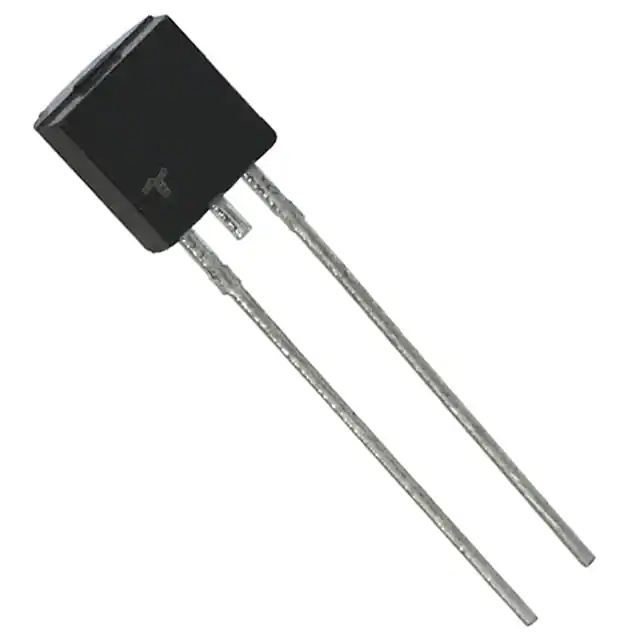

| Package / Case | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) | TO-226-2, TO-92-2 (TO-226AC) |
