Please send RFQ , we will respond immediately.
| Part Number | P1100ECRP1 | P1100ECRP2 | P1300ECRP1 | P1100EARP1 | P1100EBRP1 | P1100ECLRP1 |
|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Voltage - Breakover | 130V | 130V | 160V | 130V | 130V | 130V |
| Voltage - Off State | 90V | 90V | 120V | 90V | 90V | 90V |
| Voltage - On State | 4 V | 4 V | 4 V | 4 V | 4 V | 4 V |
| Current - Peak Pulse (8/20µs) | 400 A | 400 A | 400 A | 150 A | 250 A | 400 A |
| Current - Peak Pulse (10/1000µs) | 100 A | 100 A | 100 A | 45 A | 80 A | 100 A |
| Current - Hold (Ih) | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA |
| Number of Elements | 1 | 1 | 1 | 1 | 1 | 1 |
| Capacitance | 115pF | 115pF | 105pF | 50pF | 70pF | 115pF |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

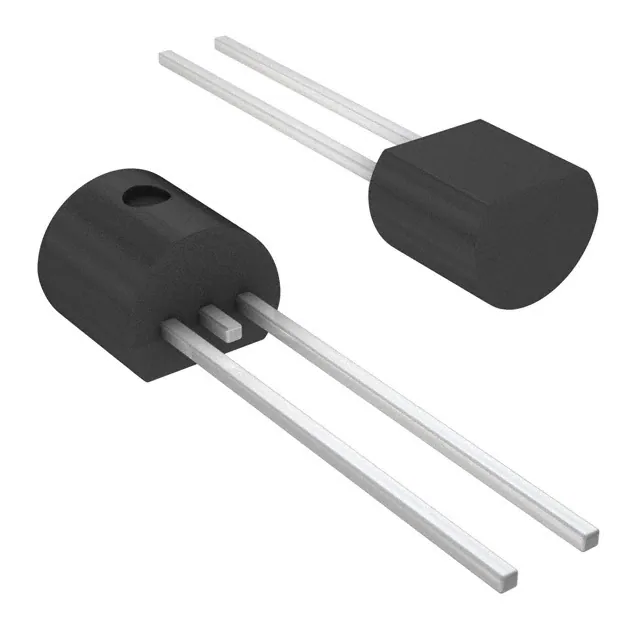

| Package / Case | TO-226-2, TO-92-2 (TO-226AC) | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) | TO-226-2, TO-92-2 (TO-226AC) | TO-226-2, TO-92-2 (TO-226AC) | TO-226-2, TO-92-2 (TO-226AC) | TO-226-2, TO-92-2 (TO-226AC) |
