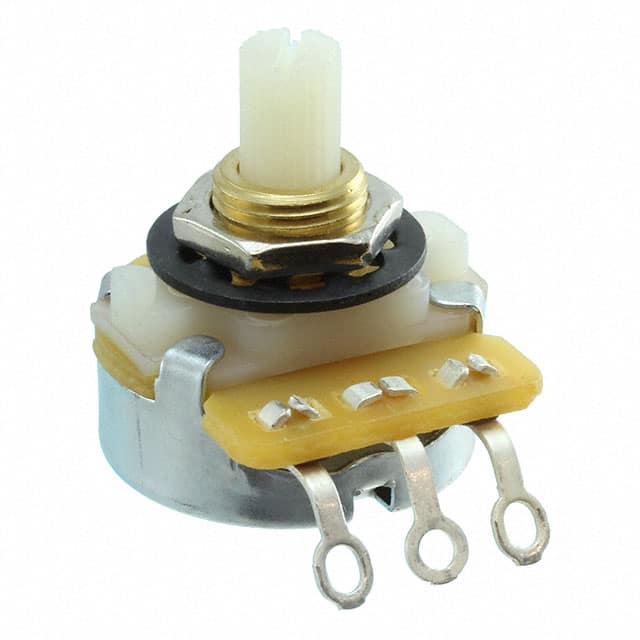

| Part Number | P1004-95 | P1004-15 | P1004-9 |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Obsolete |
| Resistance (Ohms) | 100k | 1.5M | 500k |
| Tolerance | ±10% | ±10% | ±10% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Built in Switch | None | None | None |
| Number of Turns | 1 | 1 | 1 |
| Features | - | - | - |
| Taper | Linear | Linear | Linear |
| Number of Gangs | 1 | 1 | 1 |
| Adjustment Type | User Defined | User Defined | User Defined |
| Temperature Coefficient | - | - | - |
| Rotation | 300° | 300° | 300° |
| Resistive Material | Wirewound | Wirewound | Wirewound |
| Termination Style | Solder Lug | Solder Lug | Solder Lug |
| Actuator Type | Knurled and Slotted | Knurled and Slotted | Slotted |
| Actuator Length | - | - | - |
| Actuator Diameter | - | - | - |
| Bushing Thread | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount |
