NANOSMDM100-2
  • Share:

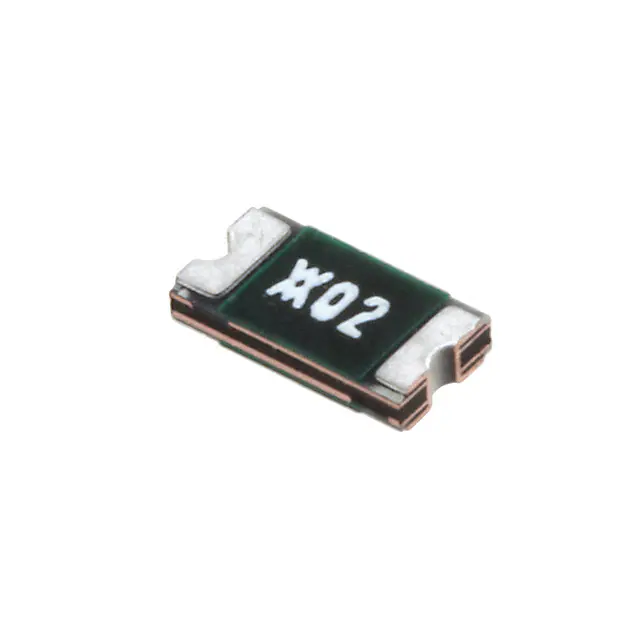

Littelfuse Inc. NANOSMDM100-2

Manufacturer No:
NANOSMDM100-2
Manufacturer:
Littelfuse Inc.
Package:
Cut Tape (CT)
Datasheet:
NANOSMDM100-2 Datasheet
ECAD Model:
-
Description:
POLYSWITCH 1.00A RESET FUSE SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymeric
Voltage - Max:6V
Current - Max:40 A
Current - Hold (Ih) (Max):1 A
Current - Trip (It):1.8 A
Time to Trip:300 ms
Resistance - Initial (Ri) (Min):60 mOhms
Resistance - Post Trip (R1) (Max):210 mOhms
Resistance - 25°C (Typ):-
Operating Temperature:-
Ratings:-
Mounting Type:Surface Mount
Package / Case:1206 (3216 Metric), Concave
Size / Dimension:0.126" L x 0.063" W (3.20mm x 1.59mm)
Height - Seated (Max):-
Thickness (Max):0.047" (1.20mm)
Lead Spacing:-
0 Remaining View Similar

In Stock

-
588

Please send RFQ , we will respond immediately.
