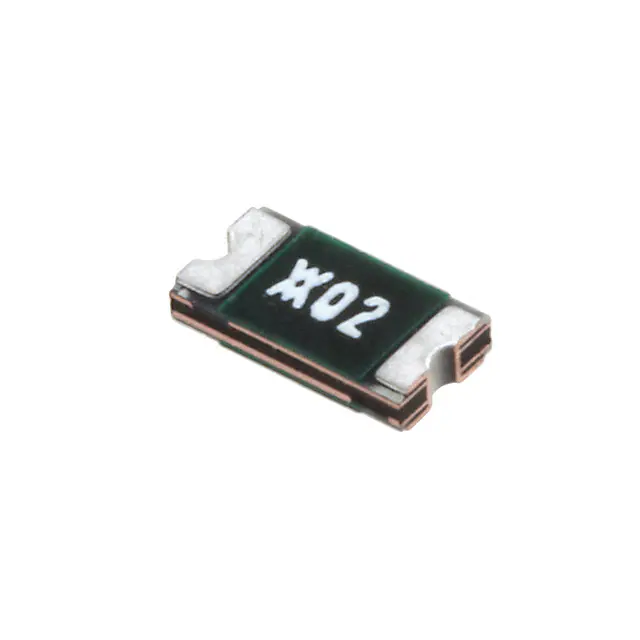

| Part Number | NANOSMDC150F-2 | NANOSMDC110F-2 | NANOSMDC150-2 |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Obsolete |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 6V | 6V | 6V |
| Current - Max | 100 A | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 1.5 A | 1.1 A | 1.5 A |
| Current - Trip (It) | 3 A | 2.2 A | 3 A |
| Time to Trip | 300 ms | 100 ms | 300 ms |
| Resistance - Initial (Ri) (Min) | 40 mOhms | 70 mOhms | 40 mOhms |
| Resistance - Post Trip (R1) (Max) | 110 mOhms | 200 mOhms | 110 mOhms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave | 1206 (3216 Metric), Concave | 1206 (3216 Metric), Concave |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.59mm) | 0.126" L x 0.063" W (3.20mm x 1.59mm) | 0.126" L x 0.065" W (3.20mm x 1.64mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.035" (0.89mm) | 0.026" (0.67mm) | 0.055" (1.40mm) |
| Lead Spacing | - | - | - |
