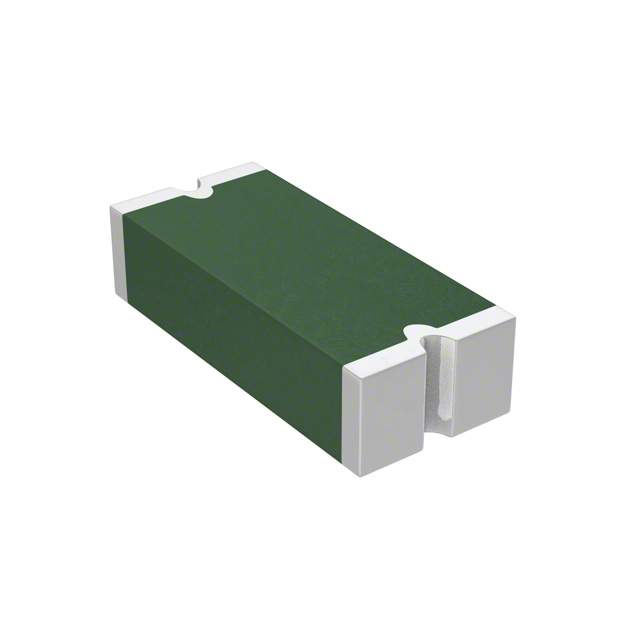

| Part Number | NANOSMD270LR-2 | NANOSMD200LR-2 |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Polymeric | Polymeric |
| Voltage - Max | 6V | 6V |
| Current - Max | 50 A | 50 A |
| Current - Hold (Ih) (Max) | 2.7 A | 2 A |
| Current - Trip (It) | 6.3 A | 6 A |
| Time to Trip | 5 s | 3 s |
| Resistance - Initial (Ri) (Min) | 5 mOhms | 6 mOhms |
| Resistance - Post Trip (R1) (Max) | - | - |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | - | - |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Size / Dimension | 0.127" L x 0.063" W (3.22mm x 1.61mm) | 0.127" L x 0.063" W (3.22mm x 1.60mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) |
| Lead Spacing | - | - |
