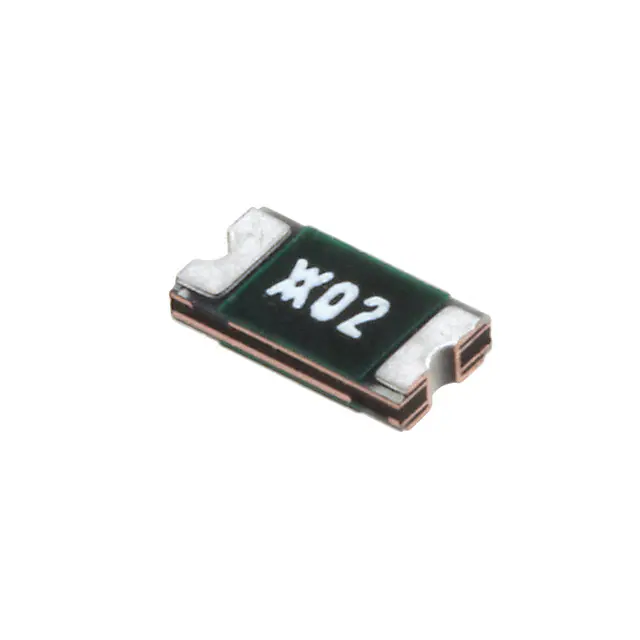

| Part Number | NANOASMDC035F-2 | NANOSMDC035F-2 | NANOASMDCH035F-2 |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V | 16V |
| Current - Max | 20 A | 20 A | 50 A |
| Current - Hold (Ih) (Max) | 350 mA | 350 mA | 350 mA |
| Current - Trip (It) | 750 mA | 750 mA | 950 mA |
| Time to Trip | 100 ms | 100 ms | 200 ms |
| Resistance - Initial (Ri) (Min) | 450 mOhms | 450 mOhms | 200 mOhms |
| Resistance - Post Trip (R1) (Max) | 1.35 Ohms | 1.35 Ohms | 1.6 Ohms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 125°C |
| Ratings | AEC-Q200 | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave | 1206 (3216 Metric), Concave | 1206 (3216 Metric), Concave |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.59mm) | 0.126" L x 0.063" W (3.20mm x 1.59mm) | 0.134" L x 0.071" W (3.40mm x 1.80mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.032" (0.82mm) | 0.032" (0.82mm) | 0.045" (1.14mm) |
| Lead Spacing | - | - | - |
