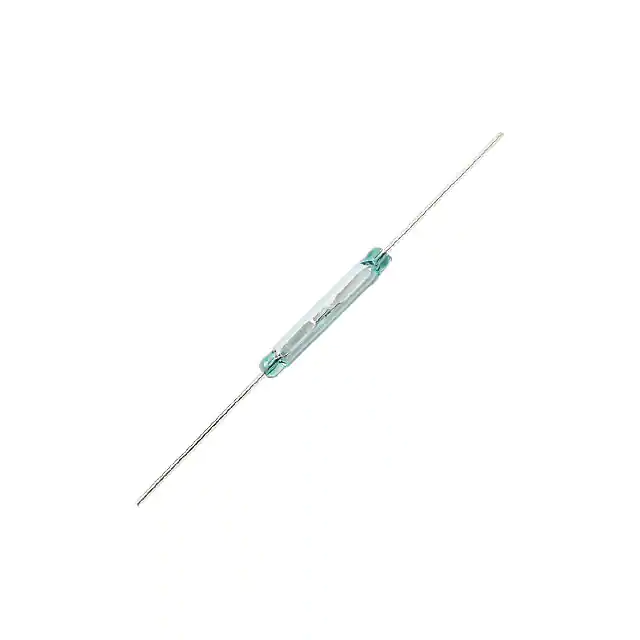

Littelfuse Inc. MRPR-20-37-43

Manufacturer No:
MRPR-20-37-43
Manufacturer:
Littelfuse Inc.
Package:
Bulk
Datasheet:
MRPR-20-37-43 Datasheet
ECAD Model:
-
Description:
SWITCH REED SPST-NO 1.1A 265V
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Glass Body Reed
Circuit:SPST-NO
Operate Range:37 ~ 43AT
Release Range:-
Current - Switching:1.1A (AC), 1.5A (DC)
Voltage - Switching AC:265 V
Voltage - Switching DC:250 V
Power - Rated:50W
Operate Time:0.75 ms
Release Time:0.3 ms
Mounting Type:Through Hole
Termination Style:Axial
Length - Overall:2.230" (56.64mm)
Size - Body:0.112" Dia x 0.800" L (2.84mm x 20.32mm)
Height Above Board:-
Operating Temperature:-20°C ~ 125°C
Capacitance:0.2 pF
Current - Carry:3A (DC)
0 Remaining View Similar

In Stock

$3.31
237

Please send RFQ , we will respond immediately.
