MLRR-3-27-33
  • Share:

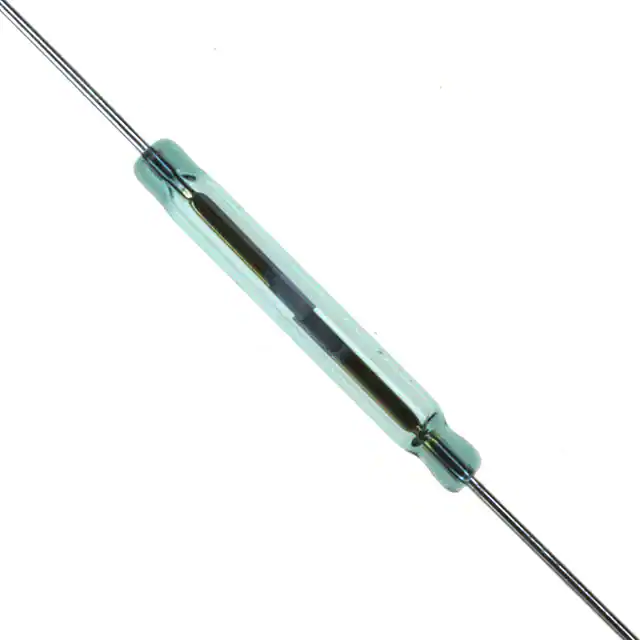

Littelfuse Inc. MLRR-3-27-33

Manufacturer No:
MLRR-3-27-33
Manufacturer:
Littelfuse Inc.
Package:
Bulk
Datasheet:
MLRR-3-27-33 Datasheet
ECAD Model:
-
Description:
SWITCH REED SPST-NO 700MA 140V
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Glass Body Reed
Circuit:SPST-NO
Operate Range:27 ~ 33AT
Release Range:-
Current - Switching:700mA (AC), 1A (DC)
Voltage - Switching AC:140 V
Voltage - Switching DC:200 V
Power - Rated:20W
Operate Time:0.7 ms
Release Time:0.2 ms
Mounting Type:Through Hole
Termination Style:Axial
Length - Overall:2.230" (56.64mm)
Size - Body:0.105" Dia x 0.600" L (2.66mm x 15.24mm)
Height Above Board:-
Operating Temperature:-40°C ~ 125°C
Capacitance:0.4 pF
Current - Carry:1.2A (DC)
0 Remaining View Similar

In Stock

$1.56
217

Please send RFQ , we will respond immediately.
