MITI-3V1-6-8
  • Share:

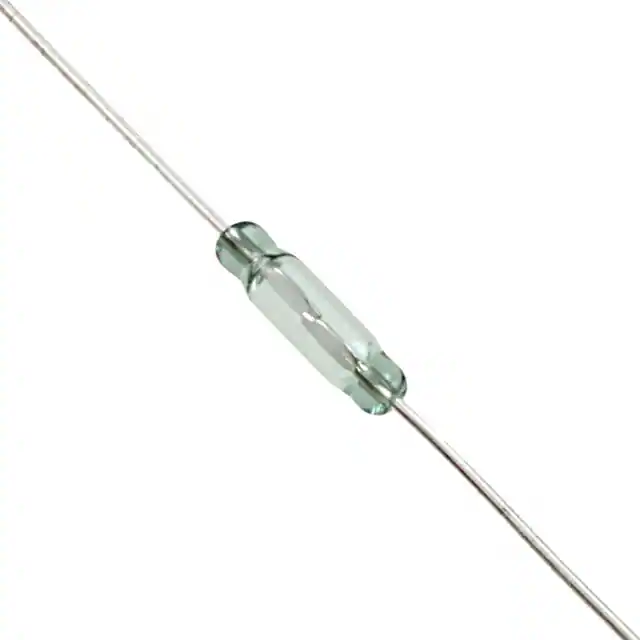

Littelfuse Inc. MITI-3V1-6-8

Manufacturer No:
MITI-3V1-6-8
Manufacturer:
Littelfuse Inc.
Package:
Bulk
Datasheet:
MITI-3V1-6-8 Datasheet
ECAD Model:
-
Description:
SWITCH REED SPST-NO 250MA 170V
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Glass Body Reed
Circuit:SPST-NO
Operate Range:6 ~ 8AT
Release Range:-
Current - Switching:250mA (DC)
Voltage - Switching AC:-
Voltage - Switching DC:170 V
Power - Rated:10W
Operate Time:0.45 ms
Release Time:0.2 ms
Mounting Type:Through Hole
Termination Style:Axial
Length - Overall:1.811" (46.00mm)
Size - Body:0.071" Dia x 0.276" L (1.80mm x 7.00mm)
Height Above Board:-
Operating Temperature:-40°C ~ 125°C
Capacitance:0.3 pF
Current - Carry:500mA (DC)
0 Remaining View Similar

In Stock

-
578

Please send RFQ , we will respond immediately.
