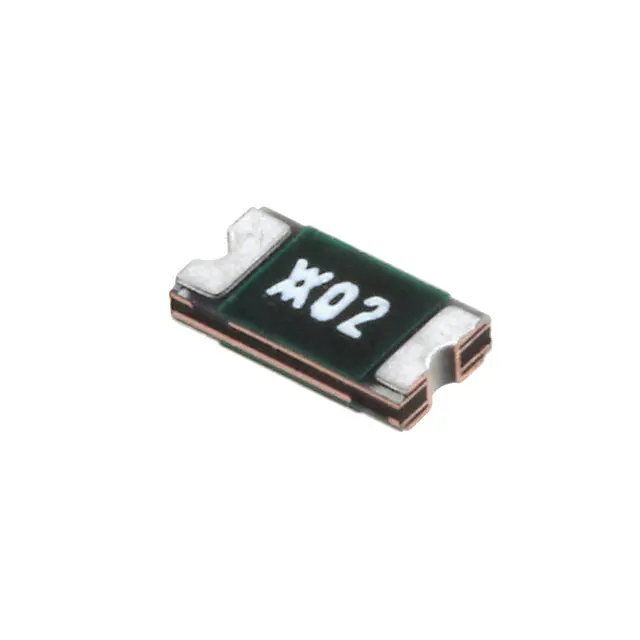

| Part Number | MINISMDE190-2 | MINISMDE190F-2 |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V |
| Current - Max | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 1.9 A | 1.9 A |
| Current - Trip (It) | 3.8 A | 3.8 A |
| Time to Trip | 2 s | 2 s |
| Resistance - Initial (Ri) (Min) | 24 mOhms | 24 mOhms |
| Resistance - Post Trip (R1) (Max) | 80 mOhms | - |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | - |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 4520 (11350 Metric), Concave | 4520 (11350 Metric), Concave |
| Size / Dimension | 0.446" L x 0.200" W (11.33mm x 5.08mm) | 0.446" L x 0.200" W (11.33mm x 5.08mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.021" (0.53mm) | 0.021" (0.53mm) |
| Lead Spacing | - | - |
