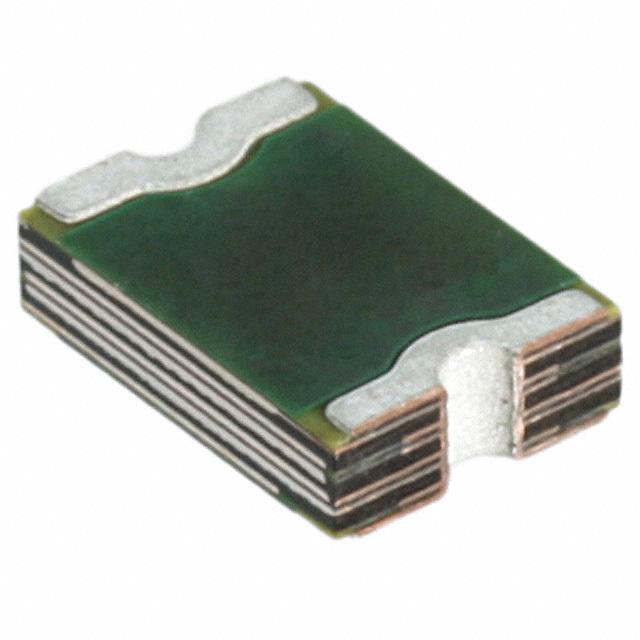

| Part Number | MINISMDC300F-2 | MINISMDC100F-2 | MINISMDC200F-2 |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 6V | 8V | 8V |
| Current - Max | 100 A | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 3 A | 1.1 A | 2 A |
| Current - Trip (It) | 6 A | 2.2 A | 4 A |
| Time to Trip | 5 s | 300 ms | 5 s |
| Resistance - Initial (Ri) (Min) | 11 mOhms | 40 mOhms | 20 mOhms |
| Resistance - Post Trip (R1) (Max) | 36 mOhms | 210 mOhms | 70 mOhms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave | 1812 (4532 Metric), Concave | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) | 0.179" L x 0.128" W (4.55mm x 3.24mm) | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.030" (0.76mm) | 0.024" (0.62mm) | 0.048" (1.22mm) |
| Lead Spacing | - | - | - |
