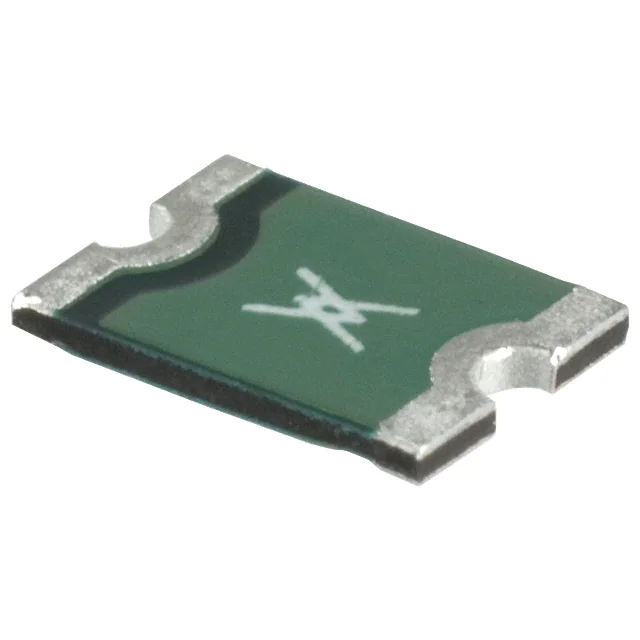

| Part Number | MINISMDC075-2 | MINISMDC075F-2 | MINISMD075-2 | MINISMDC035-2 |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Type | Polymeric | Polymeric | - | - |
| Voltage - Max | 13.2V | 13.2V | - | 6V |
| Current - Max | 100 A | 100 A | - | 40 A |
| Current - Hold (Ih) (Max) | 750 mA | 750 mA | 750 mA | 350 mA |
| Current - Trip (It) | 1.5 A | 1.5 A | - | 700 mA |
| Time to Trip | 200 ms | 200 ms | - | 0.1 s |
| Resistance - Initial (Ri) (Min) | 110 mOhms | 110 mOhms | - | 320 mOhms |
| Resistance - Post Trip (R1) (Max) | 450 mOhms | 450 mOhms | - | 1.3 Ohms |
| Resistance - 25°C (Typ) | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | - | -40°C ~ 85°C |
| Ratings | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave | 1812 (4532 Metric), Concave | 1812 (4532 Metric), Concave | 1210 (3225 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) | 0.179" L x 0.128" W (4.55mm x 3.24mm) | 0.179" L x 0.128" W (4.55mm x 3.24mm) | 0.127" L x 0.102" W (3.22mm x 2.58mm) |
| Height - Seated (Max) | - | - | - | - |
| Thickness (Max) | 0.024" (0.62mm) | 0.024" (0.62mm) | 0.024" (0.62mm) | 0.024" (0.62mm) |
| Lead Spacing | - | - | - | - |
