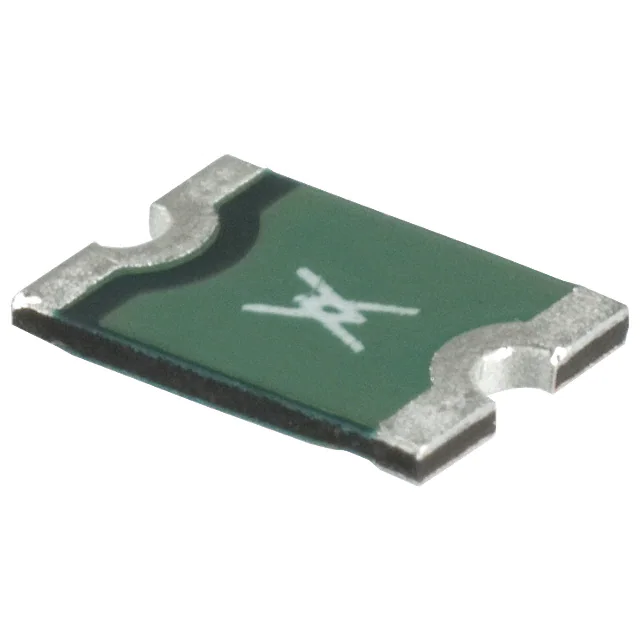

| Part Number | MINISMDC014F-2 | MINIASMDC014F-2 | MINISMDC010F-2 | MINISMDC014-2 |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Obsolete |
| Type | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 60V | 60V | 60V | 60V |
| Current - Max | 10 A | 10 A | 40 A | 10 A |
| Current - Hold (Ih) (Max) | 140 mA | 140 mA | 100 mA | 140 mA |
| Current - Trip (It) | 280 mA | 280 mA | 300 mA | - |
| Time to Trip | 8 ms | 8 ms | 5 s | 8 ms |
| Resistance - Initial (Ri) (Min) | 1.5 Ohms | 1.5 Ohms | 700 mOhms | 1.5 Ohms |
| Resistance - Post Trip (R1) (Max) | 6 Ohms | 6 Ohms | 12.7 Ohms | 6 Ohms |
| Resistance - 25°C (Typ) | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | AEC-Q200 | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave | 1812 (4532 Metric), Concave | 1812 (4532 Metric), Concave | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) | 0.179" L x 0.128" W (4.55mm x 3.24mm) | 0.179" L x 0.128" W (4.55mm x 3.24mm) | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - | - | - | - |
| Thickness (Max) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) |
| Lead Spacing | - | - | - | - |
