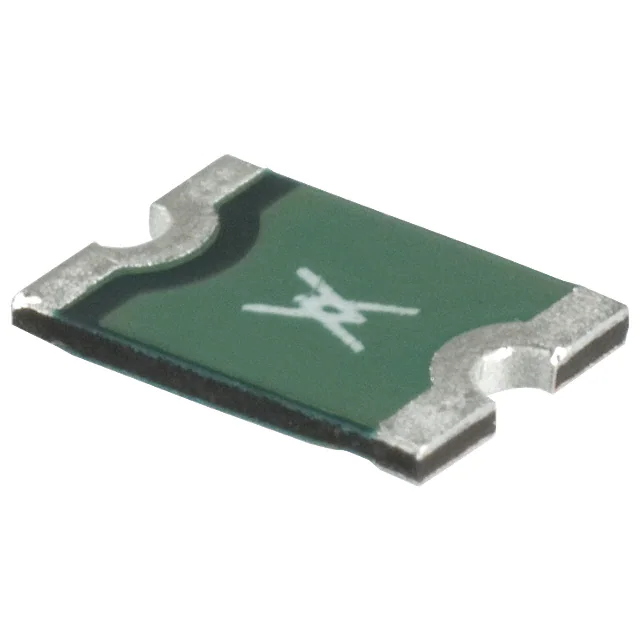

| Part Number | MINIASMDC020F-2 | MINISMDC020F-2 | MINIASMDC030F-2 | MINIASMDC050F-2 | MINIASMDC010F-2 |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 30V | 30V | 30V | 24V | 60V |
| Current - Max | 10 A | 10 A | 40 A | 100 A | 40 A |
| Current - Hold (Ih) (Max) | 200 mA | 200 mA | 300 mA | 500 mA | 100 mA |
| Current - Trip (It) | 400 mA | 400 mA | 600 mA | 1 A | 300 mA |
| Time to Trip | 20 ms | 20 ms | 100 ms | 150 ms | 5 s |
| Resistance - Initial (Ri) (Min) | 600 mOhms | 600 mOhms | 200 mOhms | 150 mOhms | 700 mOhms |
| Resistance - Post Trip (R1) (Max) | 3.3 Ohms | 3.3 Ohms | 1.75 Ohms | 1 Ohms | 12.7 Ohms |
| Resistance - 25°C (Typ) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | AEC-Q200 | - | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave | 1812 (4532 Metric), Concave | 1812 (4532 Metric), Concave | 1812 (4532 Metric), Concave | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) | 0.179" L x 0.128" W (4.55mm x 3.24mm) | 0.179" L x 0.128" W (4.55mm x 3.24mm) | 0.179" L x 0.128" W (4.55mm x 3.24mm) | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Thickness (Max) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.024" (0.62mm) | 0.035" (0.89mm) |
| Lead Spacing | - | - | - | - | - |
