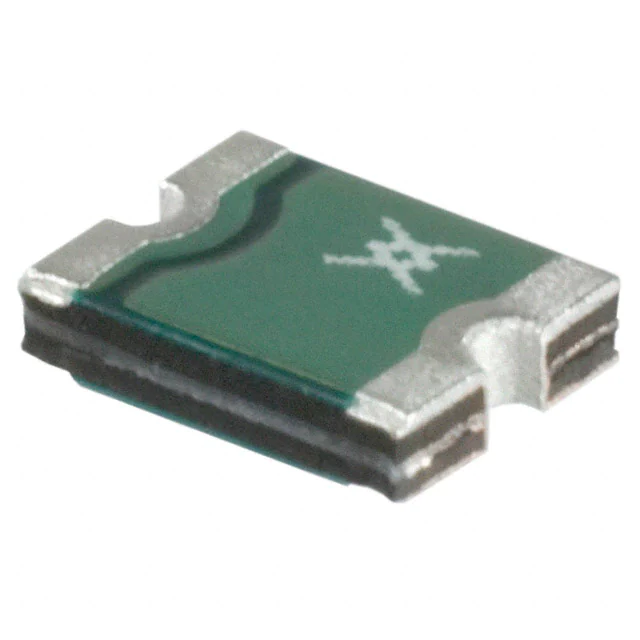

| Part Number | MICROSMDCH010F-02 | MICROSMDCH050F-02 |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 30V | 13.2V |
| Current - Max | 10 A | 10 A |
| Current - Hold (Ih) (Max) | 100 mA | 500 mA |
| Current - Trip (It) | 350 mA | 1.5 A |
| Time to Trip | 100 ms | 50 ms |
| Resistance - Initial (Ri) (Min) | 1.2 Ohms | 190 mOhms |
| Resistance - Post Trip (R1) (Max) | 11 Ohms | 900 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric), Concave | 1210 (3225 Metric), Concave |
| Size / Dimension | 0.127" L x 0.102" W (3.22mm x 2.58mm) | 0.127" L x 0.102" W (3.22mm x 2.58mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.038" (0.97mm) | 0.025" (0.64mm) |
| Lead Spacing | - | - |
