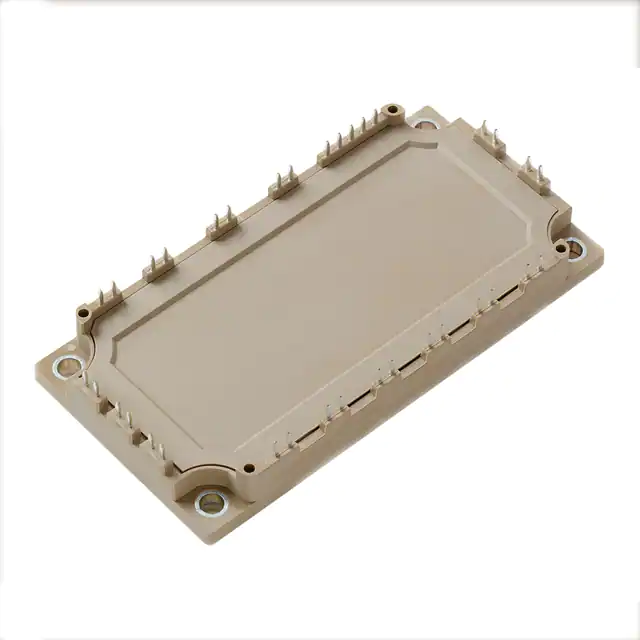

| Part Number | MG1275W-XN2MM | MG1275H-XN2MM | MG1275W-XBN2MM |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| IGBT Type | Trench Field Stop | Trench Field Stop | - |
| Configuration | Three Phase Inverter | Three Phase Inverter | Three Phase Inverter with Brake |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 105 A | 105 A | 105 A |
| Power - Max | 368 W | 348 W | 348 W |
| Vce(on) (Max) @ Vge, Ic | 1.7V @ 15V, 75A | 1.7V @ 15V, 75A | 1.7V @ 15V, 75A |
| Current - Collector Cutoff (Max) | 1 mA | 1 mA | 1 mA |
| Input Capacitance (Cies) @ Vce | 5.3 nF @ 25 V | 5.3 nF @ 25 V | 5.3 nF @ 25 V |
| Input | Standard | Standard | Three Phase Bridge Rectifier |
| NTC Thermistor | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
