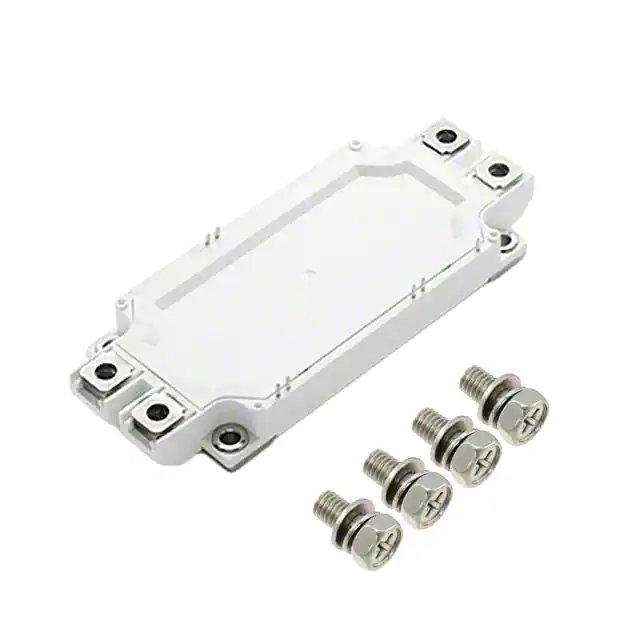

Littelfuse Inc.-MG12600WB-BR2MM - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	Trench Field Stop
Configuration:	Half Bridge
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	750 A
Power - Max:	2500 W
Vce(on) (Max) @ Vge, Ic:	2.5V @ 15V, 600A
Current - Collector Cutoff (Max):	100 µA
Input Capacitance (Cies) @ Vce:	60.5 nF @ 25 V
Input:	Standard
NTC Thermistor:	Yes
Operating Temperature:	-40°C ~ 150°C
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	WB

Littelfuse Inc. MG12600WB-BR2MM
