Littelfuse Inc.-MG1250W-XBN2MM - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	-
Configuration:	Three Phase Inverter with Brake
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	75 A
Power - Max:	260 W
Vce(on) (Max) @ Vge, Ic:	1.7V @ 15V, 50A (Typ)
Current - Collector Cutoff (Max):	1 mA
Input Capacitance (Cies) @ Vce:	3.6 nF @ 25 V
Input:	Three Phase Bridge Rectifier
NTC Thermistor:	Yes
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	Module

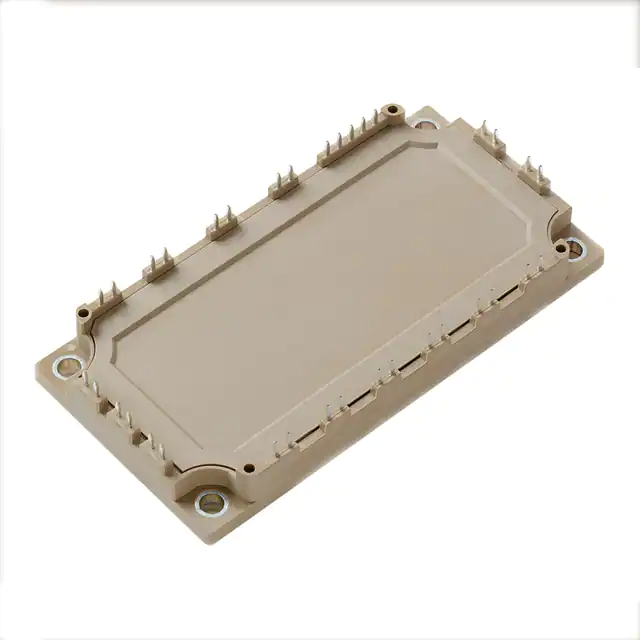

Littelfuse Inc. MG1250W-XBN2MM
