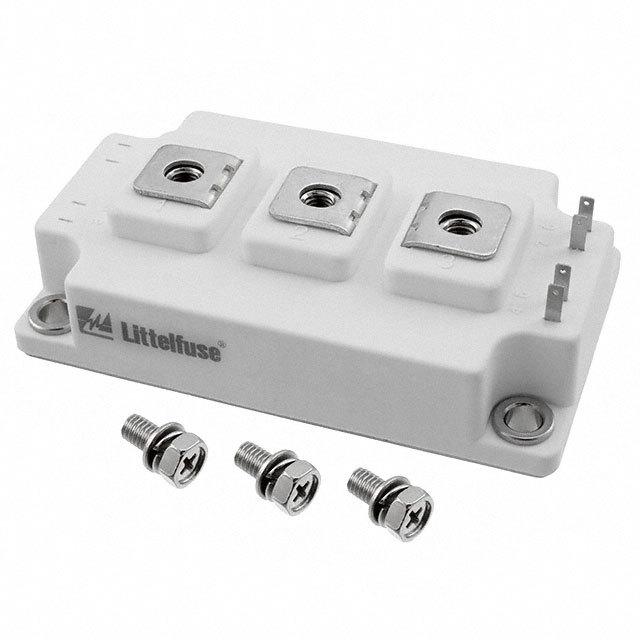

| Part Number | MG12100D-BA1MM | MG12150D-BA1MM | MG12200D-BA1MM | MG12300D-BA1MM |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| IGBT Type | - | - | - | - |
| Configuration | Half Bridge | Half Bridge | Half Bridge | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 160 A | 210 A | 300 A | 450 A |
| Power - Max | 1000 W | 1100 W | 1400 W | 1800 W |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 100A (Typ) | 1.8V @ 15V, 150A (Typ) | 1.8V @ 15V, 200A (Typ) | 1.9V @ 15V, 300A (Typ) |
| Current - Collector Cutoff (Max) | 1 mA | 1 mA | 1 mA | 2 mA |
| Input Capacitance (Cies) @ Vce | 8.58 nF @ 25 V | 11 nF @ 25 V | 14.9 nF @ 25 V | 21.2 nF @ 25 V |
| Input | Standard | Standard | Standard | Standard |
| NTC Thermistor | No | No | No | No |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | Module |
| Supplier Device Package | D3 | D3 | D3 | D3 |
