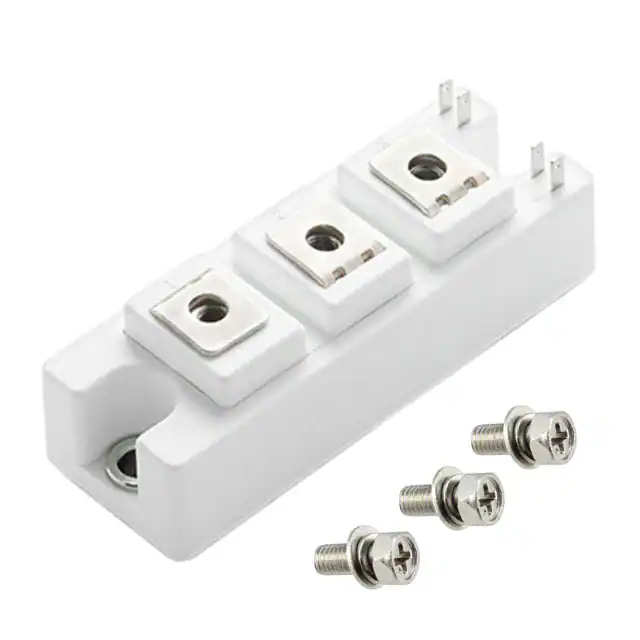

| Part Number | MG06200S-BN4MM | MG06100S-BN4MM |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete |
| IGBT Type | - | - |
| Configuration | Half Bridge | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 300 A | 125 A |
| Power - Max | 600 W | 330 W |
| Vce(on) (Max) @ Vge, Ic | 1.45V @ 15V, 200A (Typ) | 1.9V @ 15V, 100A |
| Current - Collector Cutoff (Max) | 1 mA | 1 mA |
| Input Capacitance (Cies) @ Vce | 13 nF @ 25 V | 6.2 nF @ 25 V |
| Input | Standard | Standard |
| NTC Thermistor | No | No |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | S-3 Module | S-3 Module |
| Supplier Device Package | S3 | S3 |
