MDSR-10-25-30
  • Share:

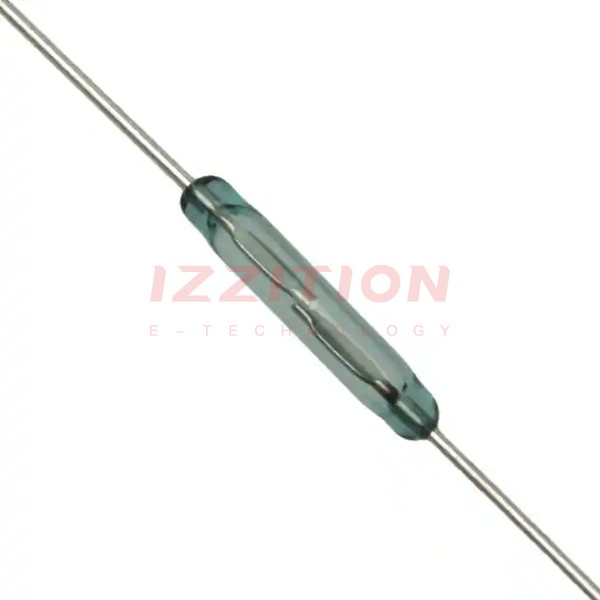

Littelfuse Inc. MDSR-10-25-30

Manufacturer No:
MDSR-10-25-30
Manufacturer:
Littelfuse Inc.
Package:
Bulk
Datasheet:
MDSR-10-25-30 Datasheet
ECAD Model:
-
Description:
SWITCH REED SPST-NO 350MA 140V
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Glass Body Reed
Circuit:SPST-NO
Operate Range:25 ~ 30AT
Release Range:-
Current - Switching:350mA (AC), 500mA (DC)
Voltage - Switching AC:140 V
Voltage - Switching DC:200 V
Power - Rated:10W
Operate Time:0.5 ms
Release Time:0.1 ms
Mounting Type:Through Hole
Termination Style:Axial
Length - Overall:1.590" (40.39mm)
Size - Body:0.071" Dia x 0.400" L (1.80mm x 10.16mm)
Height Above Board:-
Operating Temperature:-40°C ~ 125°C
Capacitance:0.2 pF
Current - Carry:1A (DC)
0 Remaining View Similar

In Stock

$1.63
570

Please send RFQ , we will respond immediately.
