MDSM-4R-22-38
  • Share:

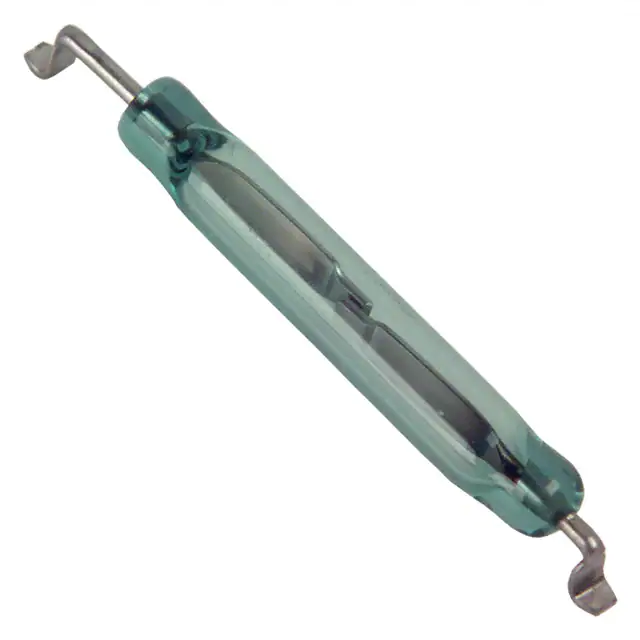

Littelfuse Inc. MDSM-4R-22-38

Manufacturer No:
MDSM-4R-22-38
Manufacturer:
Littelfuse Inc.
Package:
Tape & Reel (TR)
Datasheet:
MDSM-4R-22-38 Datasheet
ECAD Model:
-
Description:
SWITCH REED SPST-NO 350MA 140V
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Glass Body Reed
Circuit:SPST-NO
Operate Range:22 ~ 38AT
Release Range:-
Current - Switching:350mA (AC), 500mA (DC)
Voltage - Switching AC:140 V
Voltage - Switching DC:200 V
Power - Rated:10W
Operate Time:0.6 ms
Release Time:0.2 ms
Mounting Type:Surface Mount
Termination Style:Gull Wing
Length - Overall:0.760" (19.30mm)
Size - Body:0.090" Dia x 0.600" L (2.28mm x 15.24mm)
Height Above Board:0.112" (2.85mm)
Operating Temperature:-40°C ~ 125°C
Capacitance:0.2 pF
Current - Carry:1.2A (DC)
0 Remaining View Similar

In Stock

-
464

Please send RFQ , we will respond immediately.
