MDSM-10B-15-20
  • Share:

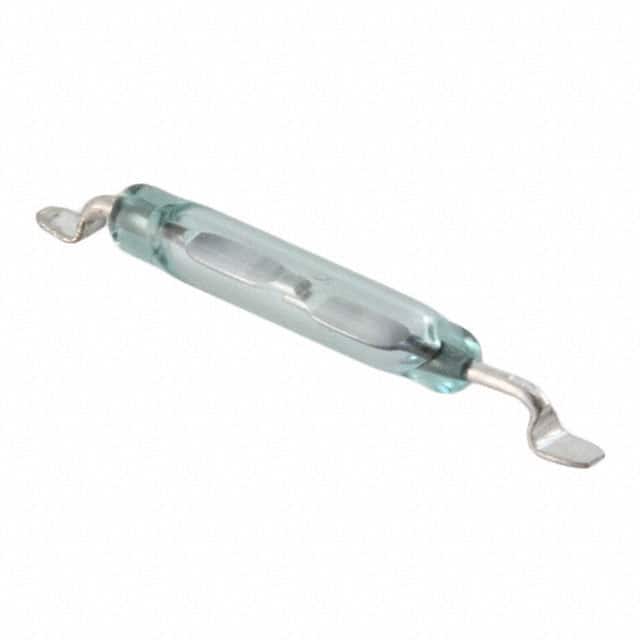

Littelfuse Inc. MDSM-10B-15-20

Manufacturer No:
MDSM-10B-15-20
Manufacturer:
Littelfuse Inc.
Package:
Bulk
Datasheet:
MDSM-10B-15-20 Datasheet
ECAD Model:
-
Description:
SWITCH REED SPST-NO 350MA 140V
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Glass Body Reed
Circuit:SPST-NO
Operate Range:15 ~ 20AT
Release Range:-
Current - Switching:350mA (AC), 500mA (DC)
Voltage - Switching AC:140 V
Voltage - Switching DC:200 V
Power - Rated:10W
Operate Time:0.5 ms
Release Time:0.1 ms
Mounting Type:Surface Mount
Termination Style:Gull Wing
Length - Overall:0.615" (15.62mm)
Size - Body:0.071" Dia x 0.400" L (1.80mm x 10.16mm)
Height Above Board:0.079" (2.00mm)
Operating Temperature:-40°C ~ 125°C
Capacitance:0.2 pF
Current - Carry:1A (DC)
0 Remaining View Similar

In Stock

$1.72
558

Please send RFQ , we will respond immediately.
