MDRR-DT-15-30-U
  • Share:

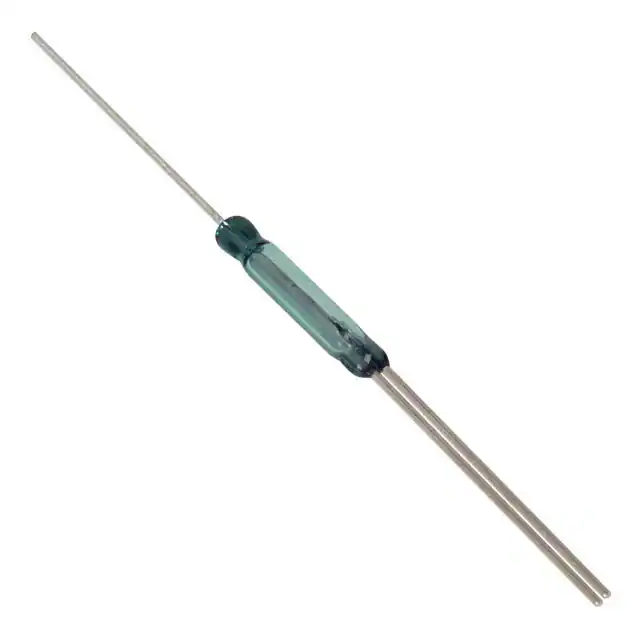

Littelfuse Inc. MDRR-DT-15-30-U

Manufacturer No:
MDRR-DT-15-30-U
Manufacturer:
Littelfuse Inc.
Package:
Bulk
Datasheet:
MDRR-DT-15-30-U Datasheet
ECAD Model:
-
Description:
SWITCH REED SPDT 180MA 120V
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Glass Body Reed
Circuit:SPDT
Operate Range:15 ~ 30AT
Release Range:-
Current - Switching:180mA (AC), 250mA (DC)
Voltage - Switching AC:120 V
Voltage - Switching DC:175 V
Power - Rated:5W
Operate Time:0.7 ms
Release Time:1 ms
Mounting Type:Through Hole
Termination Style:Axial
Length - Overall:2.066" (52.48mm)
Size - Body:0.100" Dia x 0.580" L (2.54mm x 14.73mm)
Height Above Board:-
Operating Temperature:-40°C ~ 125°C
Capacitance:1 pF
Current - Carry:1.5A (DC)
0 Remaining View Similar

In Stock

$5.04
70

Please send RFQ , we will respond immediately.
