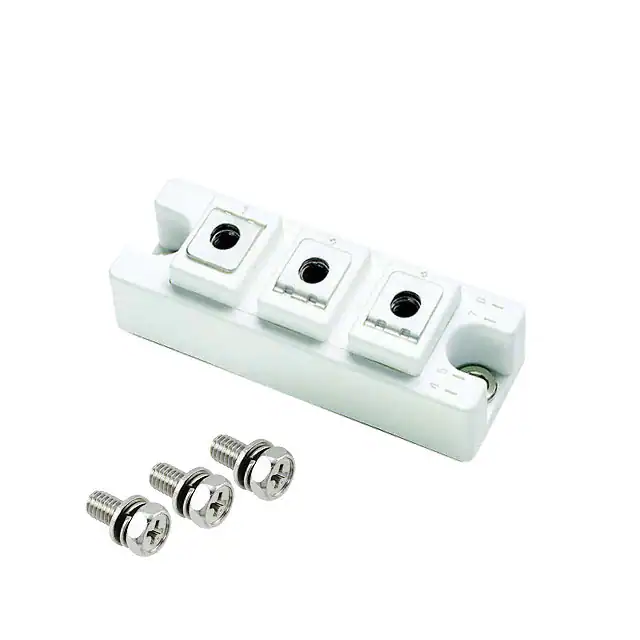

| Part Number | MD16130S-DKM2MM | MD16160S-DKM2MM | MD16180S-DKM2MM | MD18130S-DKM2MM |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Obsolete | Obsolete | Obsolete |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1600 V | 1600 V | 1600 V | 1800 V |
| Current - Average Rectified (Io) (per Diode) | 130A | 160A | 180A | 130A |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 400 A | 1.5 V @ 500 A | 1.5 V @ 600 A | 1.5 V @ 400 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - |
| Current - Reverse Leakage @ Vr | 500 µA @ 1600 V | 500 µA @ 1600 V | 500 µA @ 1600 V | 500 µA @ 1800 V |
| Operating Temperature - Junction | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | S-3 Module | S-3 Module | S-3 Module | S-3 Module |
| Supplier Device Package | S3 | S3 | S3 | S3 |
