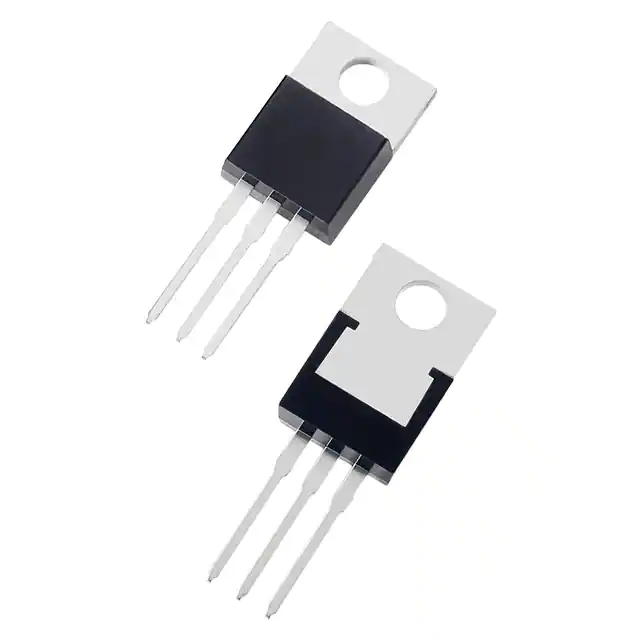

| Part Number | MBR10100CT | MBR10150CT | MBR10100CTP | MBR10200CT | MBR10H100CT | MBR10100CTH |
|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | SMC Diode Solutions | SMC Diode Solutions | SMC Diode Solutions | onsemi | Taiwan Semiconductor Corporation |
| Product Status | Active | Active | Active | Active | Obsolete | Discontinued at Digi-Key |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 150 V | 100 V | 200 V | 100 V | 100 V |
| Current - Average Rectified (Io) (per Diode) | 5A | 5A | - | - | 5A | 10A |
| Voltage - Forward (Vf) (Max) @ If | 780 mV @ 3 A | 930 mV @ 5 A | 850 mV @ 5 A | 980 mV @ 5 A | 730 mV @ 5 A | 950 mV @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 1 mA @ 100 V | 1 mA @ 150 V | 1 mA @ 100 V | 1 mA @ 200 V | 3.5 µA @ 100 V | 100 µA @ 100 V |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | 175°C (Max) | -55°C ~ 150°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 |
| Supplier Device Package | TO-220AB | TO-220AB | TO-220AB | TO-220AB | TO-220 | TO-220AB |
