Please send RFQ , we will respond immediately.

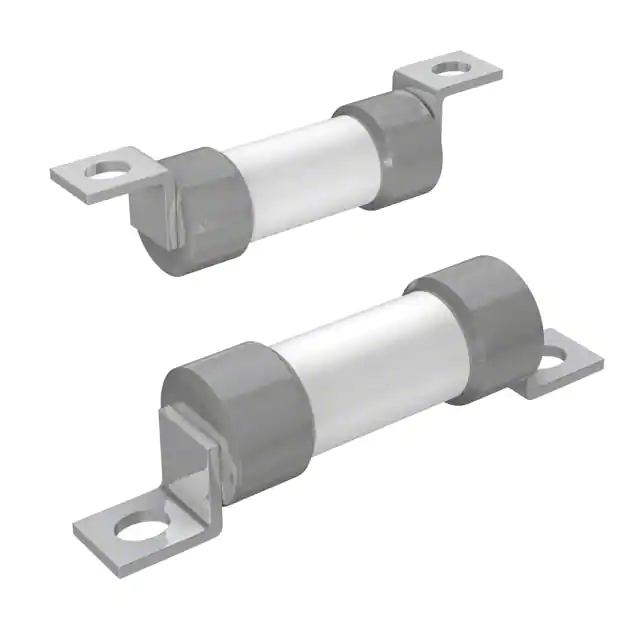

| Part Number | LVSP0080TX2 | LVSP0030TX2 | LVSP0040TX2 | LVSP0060TX2 |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 80A | 30A | 40A | 60A |
| Voltage Rating - AC | 600 V | 600 V | 600 V | 600 V |
| Voltage Rating - DC | - | - | - | - |
| Response Time | Slow Blow | Slow Blow | Slow Blow | Slow Blow |
| Applications | TVSS Protection | TVSS Protection | TVSS Protection | TVSS Protection |
| Features | - | - | - | - |
| Class | - | - | - | - |
| Approval Agency | UR | UR | UR | UR |
| Operating Temperature | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 200kA | 200kA | 200kA | 200kA |
| Package / Case | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard |
| Size / Dimension | 0.816" Dia x 2.250" L (20.73mm x 57.15mm) | 0.816" Dia x 2.250" L (20.73mm x 57.15mm) | 0.816" Dia x 2.250" L (20.73mm x 57.15mm) | 0.816" Dia x 2.250" L (20.73mm x 57.15mm) |
