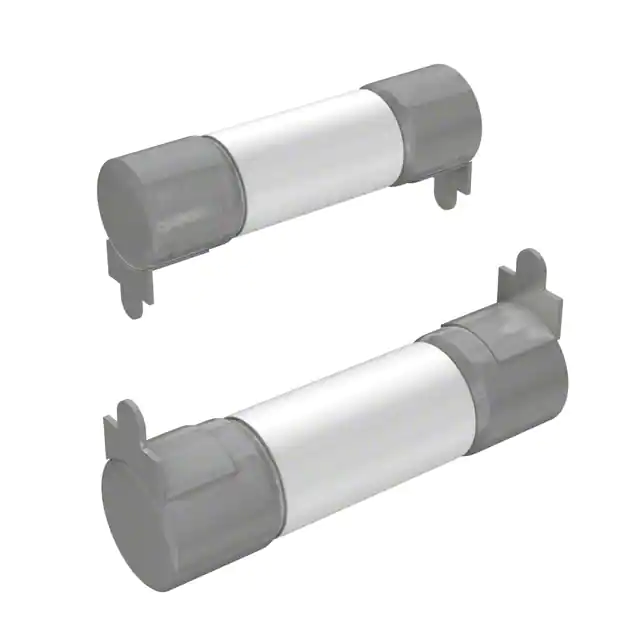

| Part Number | LVSP0015TXR | LVSP0005TXR | LVSP0010TXR |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Fuse Type | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 15A | 5A | 10A |
| Voltage Rating - AC | 600 V | 600 V | 600 V |
| Voltage Rating - DC | - | - | - |
| Response Time | Slow Blow | Slow Blow | Slow Blow |
| Applications | TVSS Protection | TVSS Protection | TVSS Protection |
| Features | - | - | - |
| Class | - | - | - |
| Approval Agency | UR | UR | UR |
| Operating Temperature | - | - | - |
| Breaking Capacity @ Rated Voltage | 200kA | 200kA | 200kA |
| Package / Case | Radial, Can, Horizontal | Radial, Can, Horizontal | Radial, Can, Horizontal |
| Size / Dimension | 0.406" Dia x 1.500" L (10.30mm x 38.00mm) | 0.406" Dia x 1.500" L (10.30mm x 38.00mm) | 0.406" Dia x 1.500" L (10.30mm x 38.00mm) |
