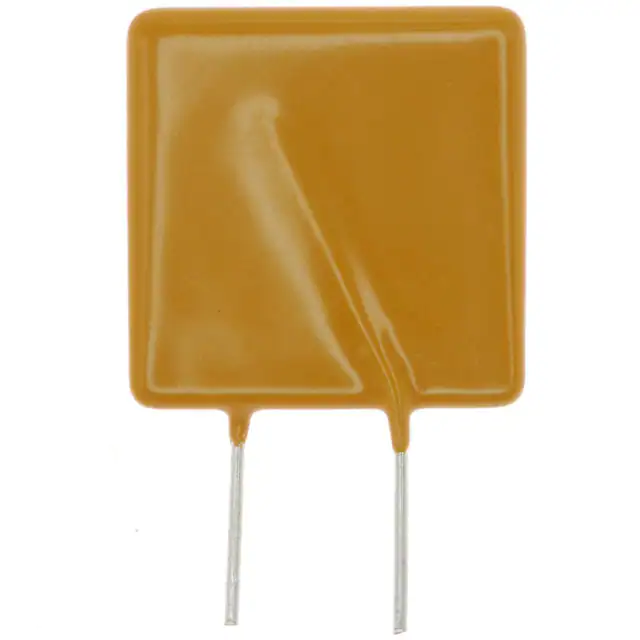

| Part Number | LVRL075S | LVR075S |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Polymeric | Polymeric |
| Voltage - Max | 120V (135V Int) | 240V (265V Int) |
| Current - Max | 7.5 A | 7.5 A |
| Current - Hold (Ih) (Max) | 750 mA | 750 mA |
| Current - Trip (It) | 1.52 A | 1.5 A |
| Time to Trip | 14.4 s | 18 s |
| Resistance - Initial (Ri) (Min) | 250 mOhms | 316 mOhms |
| Resistance - Post Trip (R1) (Max) | 690 mOhms | 839 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.430" L x 0.160" W (10.90mm x 4.10mm) | 0.450" L x 0.189" W (11.43mm x 4.80mm) |
| Height - Seated (Max) | 0.669" (17.00mm) | 0.921" (23.40mm) |
| Thickness (Max) | - | - |
| Lead Spacing | 0.200" (5.08mm) | 0.200" (5.08mm) |
