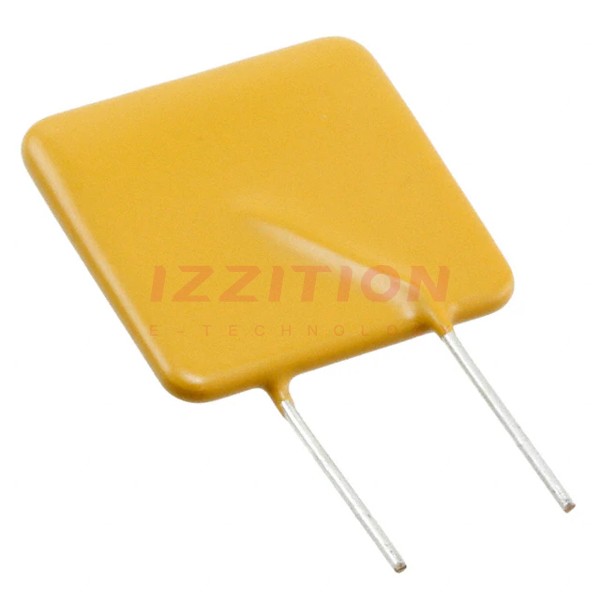

| Part Number | LVR200S-240 | LVR100S-240 | LVR200K-240 |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Type | Polymeric | Polymeric | - |
| Voltage - Max | 240V (265V Int) | 240V (265V Int) | - |
| Current - Max | 20 A | 10 A | - |
| Current - Hold (Ih) (Max) | 2 A | 1 A | - |
| Current - Trip (It) | 4 A | 2 A | - |
| Time to Trip | 28 s | 21 s | - |
| Resistance - Initial (Ri) (Min) | 89 mOhms | 218 mOhms | - |
| Resistance - Post Trip (R1) (Max) | 221 mOhms | 580 mOhms | - |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | - |
| Ratings | - | - | - |
| Mounting Type | Through Hole | Through Hole | - |
| Package / Case | Radial, Disc | Radial, Disc | - |
| Size / Dimension | 0.980" L x 0.240" W (24.90mm x 6.10mm) | 0.736" Dia x 0.201" T (18.70mm x 5.10mm) | - |
| Height - Seated (Max) | 1.331" (33.80mm) | 0.961" (24.40mm) | - |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.400" (10.15mm) | 0.400" (10.15mm) | - |
