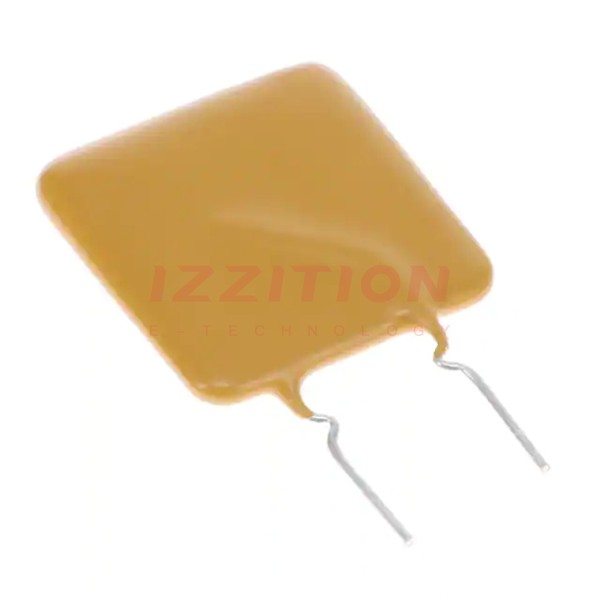

| Part Number | LVR200K-240 | LVR200S-240 |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active |
| Type | - | Polymeric |
| Voltage - Max | - | 240V (265V Int) |
| Current - Max | - | 20 A |
| Current - Hold (Ih) (Max) | - | 2 A |
| Current - Trip (It) | - | 4 A |
| Time to Trip | - | 28 s |
| Resistance - Initial (Ri) (Min) | - | 89 mOhms |
| Resistance - Post Trip (R1) (Max) | - | 221 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | - | -20°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | - | Through Hole |
| Package / Case | - | Radial, Disc |
| Size / Dimension | - | 0.980" L x 0.240" W (24.90mm x 6.10mm) |
| Height - Seated (Max) | - | 1.331" (33.80mm) |
| Thickness (Max) | - | - |
| Lead Spacing | - | 0.400" (10.15mm) |
