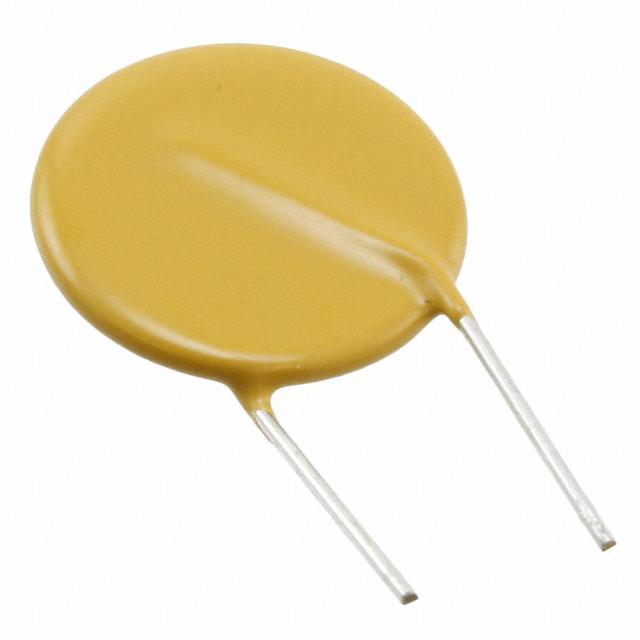

| Part Number | LVR125S-240 | LVR125K-240 |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active |
| Type | Polymeric | - |
| Voltage - Max | 240V (265V Int) | - |
| Current - Max | 12.5 A | - |
| Current - Hold (Ih) (Max) | 1.25 A | - |
| Current - Trip (It) | 2.5 A | - |
| Time to Trip | 23 s | - |
| Resistance - Initial (Ri) (Min) | 165 mOhms | - |
| Resistance - Post Trip (R1) (Max) | 440 mOhms | - |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -20°C ~ 85°C | - |
| Ratings | - | - |
| Mounting Type | Through Hole | - |
| Package / Case | Radial, Disc | - |
| Size / Dimension | 0.835" Dia x 0.209" T (21.20mm x 5.30mm) | - |
| Height - Seated (Max) | 1.079" (27.40mm) | - |
| Thickness (Max) | - | - |
| Lead Spacing | 0.400" (10.15mm) | - |
