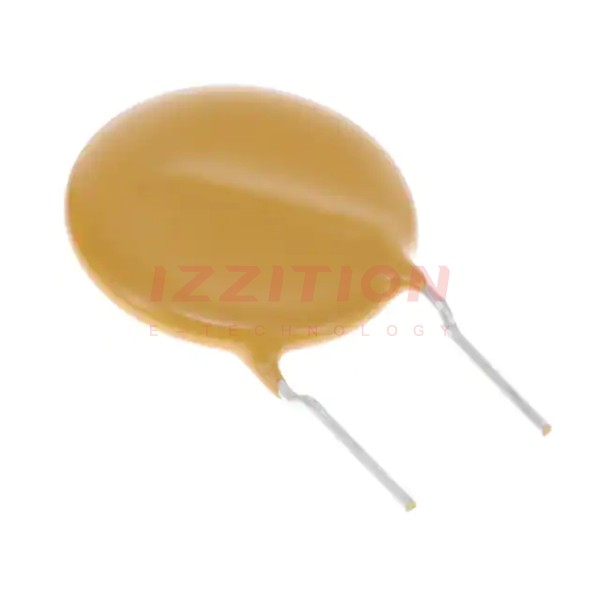

| Part Number | LVR125K-240 | LVR125S-240 |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active |
| Type | - | Polymeric |
| Voltage - Max | - | 240V (265V Int) |
| Current - Max | - | 12.5 A |
| Current - Hold (Ih) (Max) | - | 1.25 A |
| Current - Trip (It) | - | 2.5 A |
| Time to Trip | - | 23 s |
| Resistance - Initial (Ri) (Min) | - | 165 mOhms |
| Resistance - Post Trip (R1) (Max) | - | 440 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | - | -20°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | - | Through Hole |
| Package / Case | - | Radial, Disc |
| Size / Dimension | - | 0.835" Dia x 0.209" T (21.20mm x 5.30mm) |
| Height - Seated (Max) | - | 1.079" (27.40mm) |
| Thickness (Max) | - | - |
| Lead Spacing | - | 0.400" (10.15mm) |
