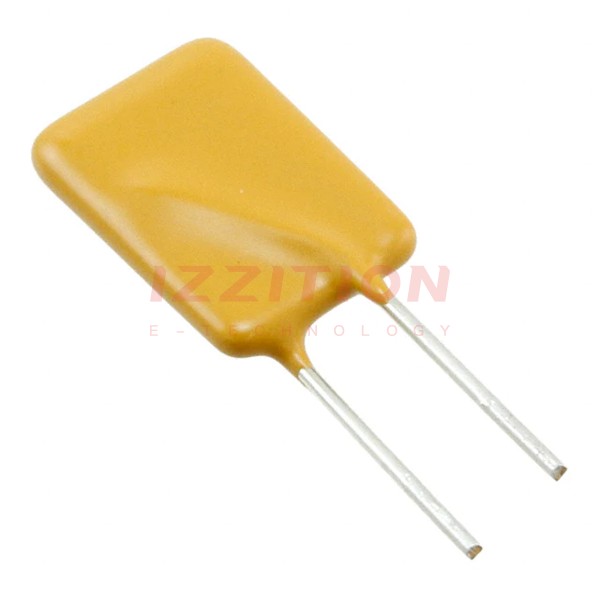

| Part Number | LVR075S-240 | LVR075K-240 |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active |
| Type | Polymeric | - |
| Voltage - Max | 240V (265V Int) | - |
| Current - Max | 7.5 A | - |
| Current - Hold (Ih) (Max) | 750 mA | - |
| Current - Trip (It) | 1.5 A | - |
| Time to Trip | 18 s | - |
| Resistance - Initial (Ri) (Min) | 316 mOhms | - |
| Resistance - Post Trip (R1) (Max) | 839 mOhms | - |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -20°C ~ 85°C | - |
| Ratings | - | - |
| Mounting Type | Through Hole | - |
| Package / Case | Radial, Disc | - |
| Size / Dimension | 0.450" L x 0.189" W (11.43mm x 4.80mm) | - |
| Height - Seated (Max) | 0.921" (23.40mm) | - |
| Thickness (Max) | - | - |
| Lead Spacing | 0.200" (5.08mm) | - |
